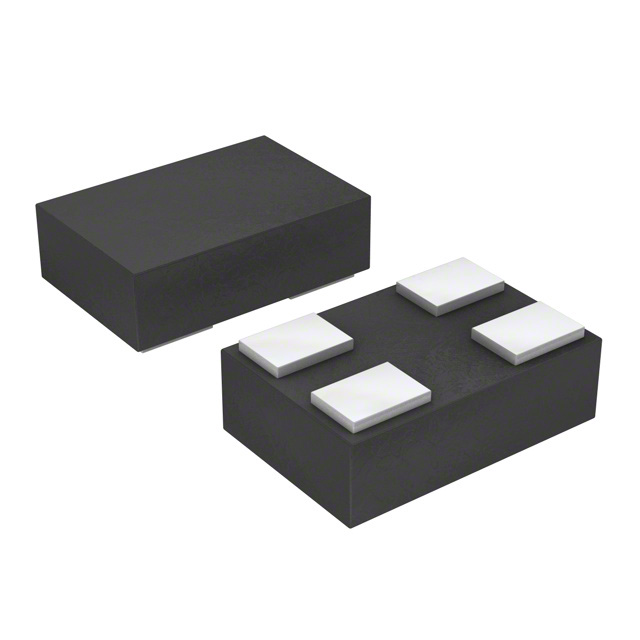

BAR 90-098L4 E6327
UnknownInfineon Technologies
RF DIODE PIN 80V 250MW TSLP-4-7
Deep-Dive with AI
Search across all available documentation for this part.
BAR 90-098L4 E6327
UnknownInfineon Technologies
RF DIODE PIN 80V 250MW TSLP-4-7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BAR 90-098L4 E6327 |
|---|---|
| Current - Max [Max] | 100 mA |
| Diode Type | PIN - 2 Independent |
| Operating Temperature | 150 °C |
| Package / Case | 4-XFDFN |
| Power Dissipation (Max) [Max] | 250 mW |
| Resistance @ If, F | 800 mOhm |
| Supplier Device Package | PG-TSLP-4-7 |
| Voltage - Peak Reverse (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 15000 | $ 0.18 | |
| 30000 | $ 0.17 | |||
Description
General part information
BAR90 Series
RF Diode PIN - 2 Independent 80V 100 mA 250 mW PG-TSLP-4-7
Documents
Technical documentation and resources
No documents available
