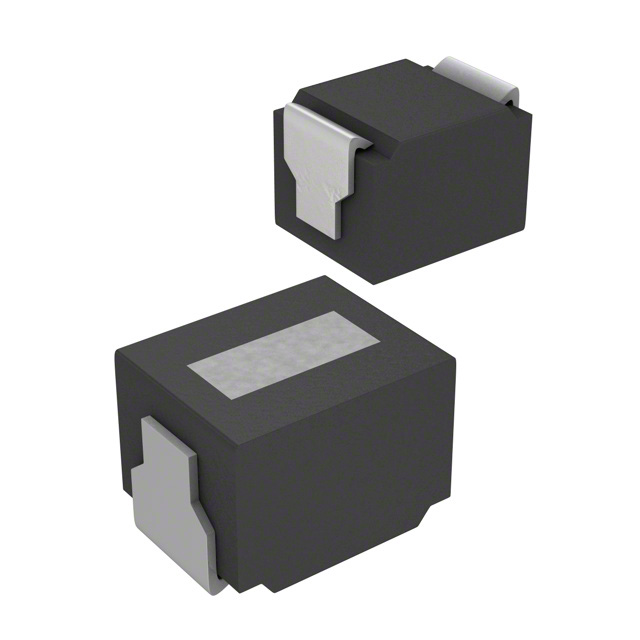

CM252016-101KL

Obsolete

Bourns Inc.

FIXED IND 100UH 60MA 21 OHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 100UH 60MA 21 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Inductance	Tolerance	DC Resistance (DCR) [Max]	Shielding	Current Rating (Amps)	Q @ Freq	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Type	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. CM252016-680KL	Nonstandard	68 µH	10 %	16.6 Ohm	Unshielded	70 mA	2.52 MHz 20	2.52 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Ferrite	Surface Mount	0.063 in	1.6 mm	Drum Core Wirewound	15 MHz	100 °C	-20 C
Bourns Inc. CM252016-220KL	Nonstandard	22 µH	10 %		Unshielded	60 mA	2.52 MHz 25	2.52 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Ferrite	Surface Mount	0.063 in	1.6 mm	Drum Core Wirewound	22 MHz	100 °C	-20 C	5.8 Ohm
Bourns Inc. CM252016-101KL	Nonstandard	100 µH	10 %	21 Ohm	Unshielded	60 mA	15 796 kHz	796 kHz	0.098 "	2 mm	2.5 mm	0.079 in	Ferrite	Surface Mount	0.063 in	1.6 mm	Drum Core Wirewound	12 MHz	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 µH Unshielded Drum Core, Wirewound Inductor 60 mA 21Ohm Max Nonstandard
