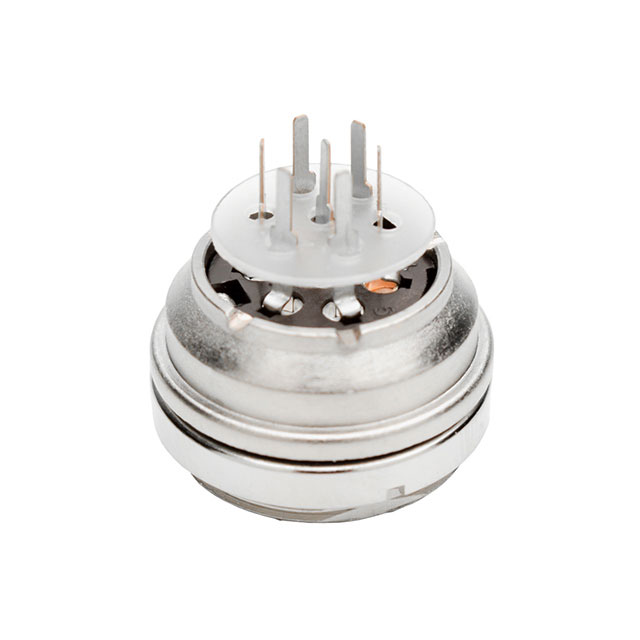

Specification	C091 61G007 120 2

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating	7 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Mounting Type	Panel Mount, Through Hole
Number of Positions	7
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Termination	Solder
Voltage Rating	60 V

C091 61G007 Series

Part	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current Rating	Shell Size - Insert	Number of Positions	Connector Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Fastening Type	Color	Shell Finish	Voltage Rating	Contact Finish - Mating	Shielding	Termination
Amphenol Tuchel Industrial C091 61G007 130 2	Die Cast	100 °C	-40 °C	Panel Mount Through Hole	7 A	M16-7	7	Female Sockets Receptacle	Keyed	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Metal	Threaded	Silver	Nickel	60 V	Silver	Shielded	Solder
Amphenol Tuchel Industrial C091 61G007 110 2	Die Cast	100 °C	-40 °C	Panel Mount Through Hole	7 A	M16-7	7	Female Sockets Receptacle	Keyed	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Metal	Threaded	Silver	Nickel	60 V	Silver	Shielded	Solder
Amphenol Tuchel Industrial C091 61G007 120 2	Die Cast	100 °C	-40 °C	Panel Mount Through Hole	7 A	M16-7	7	Female Sockets Receptacle	Keyed	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Metal	Threaded	Silver	Nickel	60 V	Silver	Shielded	Solder
