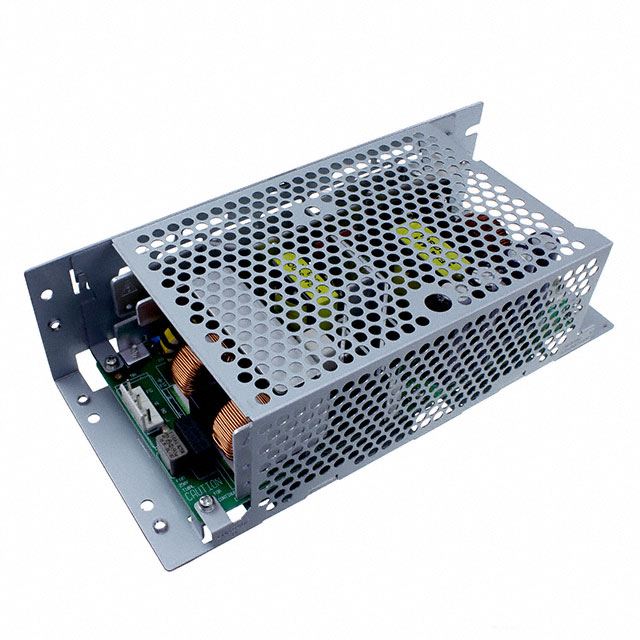

LFA240F-48-SNY

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LFA240F-48-SNY

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFA240F-48-SNY

Applications	ITE (Commercial)
Approval Agency	UL, TUV, cURus, CE, CSA
Current - Output 1	5 A
Efficiency	87.5 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	180.1 mm
Size / Dimension [x]	7.09 in
Size / Dimension [y]	84.1 mm
Size / Dimension [y]	3.31 "
Size / Dimension [z]	1.83 in
Size / Dimension [z]	46.5 mm
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

LFA240F Series

...

Part	Current - Output 1	Number of Outputs	Applications	Type	Efficiency	Approval Agency	Standard Number	Voltage - Output 1	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Isolation	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Cosel USA, Inc. LFA240F-24-CT	10 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	24 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-24-RY	10 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	24 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-36-G	6.7 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	36 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-48-SNY	5 A	1	ITE (Commercial)	Enclosed	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	48 V	-10 °C	158 °F	3000 V	Chassis Mount	1.83 in	3.31 "	7.09 in	46.5 mm	180.1 mm	84.1 mm
Cosel USA, Inc. LFA240F-36-SG	6.7 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	36 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-36-TY	6.7 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	36 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-48-GR2	5 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	48 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-48-SNG	5 A	1	ITE (Commercial)	Enclosed	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	48 V	-10 °C	158 °F	3000 V	Chassis Mount	1.83 in	3.31 "	7.09 in	46.5 mm	180.1 mm	84.1 mm
Cosel USA, Inc. LFA240F-36-R	6.7 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	36 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm
Cosel USA, Inc. LFA240F-36-SR2	6.7 A	1	ITE (Commercial)	Open Frame	87.5 %	CE CSA cURus TUV UL	60950-1 62368-1	36 V	-10 °C	158 °F	3000 V	Chassis Mount	1.04 in	1.97 "	5.2 in	26.4 mm	132.1 mm	50 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 144.25

Description

General part information

LFA240F Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
