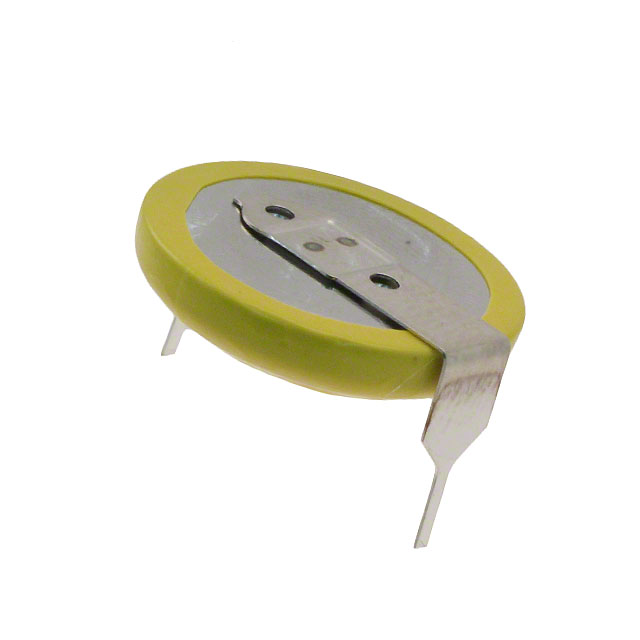

BR-1632/HFN

Active

Panasonic - BSG

BATTERY LITHIUM 3V COIN 16MM

Search across all available documentation for this part.

Active

Panasonic - BSG

BATTERY LITHIUM 3V COIN 16MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR-1632/HFN	BR-1632 Series

Battery Cell Size	16 mm	16 mm
Battery Cell Size	Coin	Coin
Battery Chemistry	Lithium Poly-Carbon Monofluoride	Lithium Poly-Carbon Monofluoride
Capacity	120 mAh	120 mAh
Discharge Rate	30 µA	30 µA
Shipping Info	Due to restrictions, only ground shipment is allowed.	Due to restrictions, only ground shipment is allowed.
Termination Style	PC Pin (Horizontal Mount)	PC Pin (Horizontal Mount), SMD (SMT) Tab, PC Pin (Vertical Mount)
Voltage - Rated	3 VDC	3 VDC
Weight	1.5 g	1.5 g

BATTERY LITHIUM 3V COIN 16MM

Part	Capacity	Discharge Rate	Battery Chemistry	Termination Style	Battery Cell Size	Battery Cell Size	Weight	Voltage - Rated	Shipping Info
Panasonic - BSG BR-1632A/GAN	120 mAh	30 µA	Lithium Poly-Carbon Monofluoride	PC Pin (Horizontal Mount)	16 mm	Coin	1.5 g	3 VDC	Due to restrictions, only ground shipment is allowed.
Panasonic - BSG BR-1632A/FAN	120 mAh	30 µA	Lithium Poly-Carbon Monofluoride	SMD (SMT) Tab	16 mm	Coin	1.5 g	3 VDC	Due to restrictions, only ground shipment is allowed.
Panasonic - BSG BR-1632/V1AN	120 mAh	30 µA	Lithium Poly-Carbon Monofluoride	PC Pin (Vertical Mount)	16 mm	Coin	1.5 g	3 VDC	Due to restrictions, only ground shipment is allowed.
Panasonic - BSG BR-1632/HFN	120 mAh	30 µA	Lithium Poly-Carbon Monofluoride	PC Pin (Horizontal Mount)	16 mm	Coin	1.5 g	3 VDC	Due to restrictions, only ground shipment is allowed.

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coin, 16.0mm Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)
