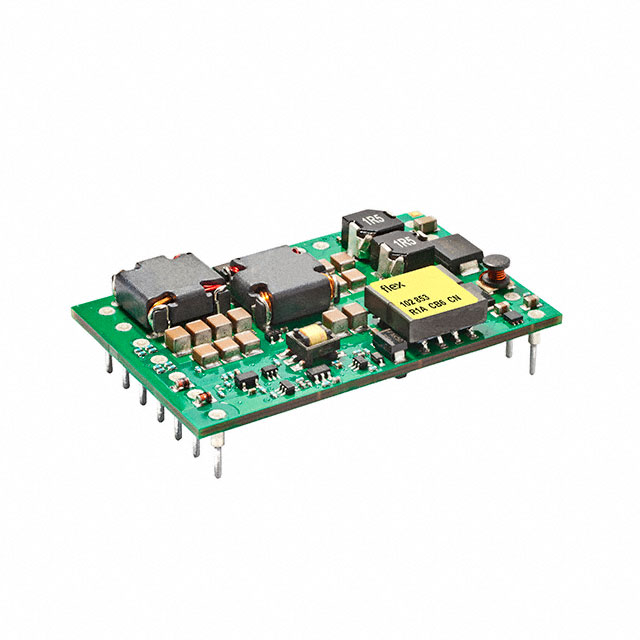

PIM4328PDA

Active

Flex Power Modules

DC DC CONVERTER 3.3V 5V 58W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 3.3V 5V 58W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 5V 58W

Part	Efficiency	Approval Agency	Features	Number of Outputs	Type	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Voltage - Output 2	Mounting Type	Package / Case	Applications	Voltage - Input (Max) [Max]	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]
Flex Power Modules PIM4328PDA	98.8 %	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™	2	Isolated Module	62368-1	0.42 in	36.8 mm	57.9 mm	10.7 mm	2.28 in	1.45 in	Quarter Brick	5 V	Through Hole	Quarter Brick	ITE (Commercial)	75 V	3.6 A, 12 A	36 V	2250 VDC	3.3 V	110 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 3.3V 5V 12A, 3.6A 36V - 75V Input
