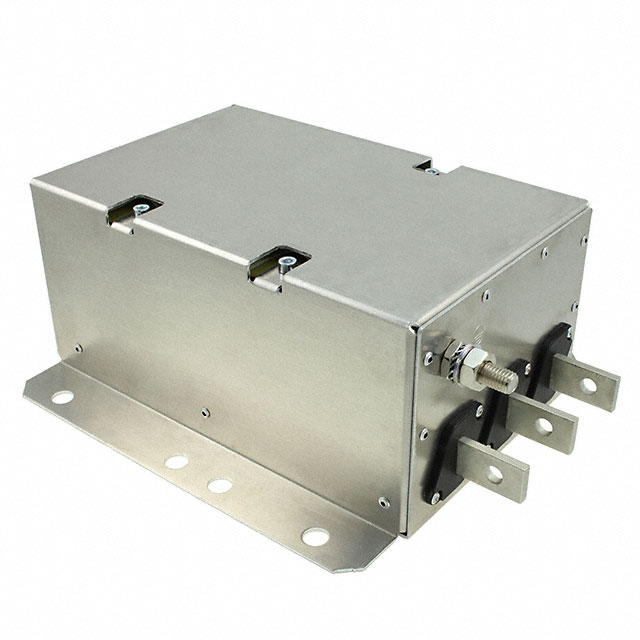

250APH12L

Active

TE Connectivity Corcom Filters

LINE FILTER 520VAC 250A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 520VAC 250A CHASSIS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	250APH12L	250A Series

Applications	General Purpose	General Purpose
Configuration	Three Stage	Three Stage
Current	250 A	250 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Terminal Post	Terminal Post
Voltage - Rated AC	520 V	520 - 690 V

LINE FILTER 520VAC 250A CHASSIS

Part	Filter Type	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Configuration	Current	Termination Style	Mounting Type
TE Connectivity Corcom Filters 250APH12L	Three Phase (Delta)	520 V	60 Hz	50 Hz	General Purpose	-10 °C	50 °C	Three Stage	250 A	Terminal Post	Chassis Mount
TE Connectivity Corcom Filters 250APS12P	Three Phase (Delta)	690 V	60 Hz	50 Hz	General Purpose	-10 °C	50 °C	Three Stage	250 A	Terminal Post	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 865.75

General part information

Three Phase (Delta) EMC/EMI Line Filter 250 A 520V 50/60Hz Three Stage Terminal Post
