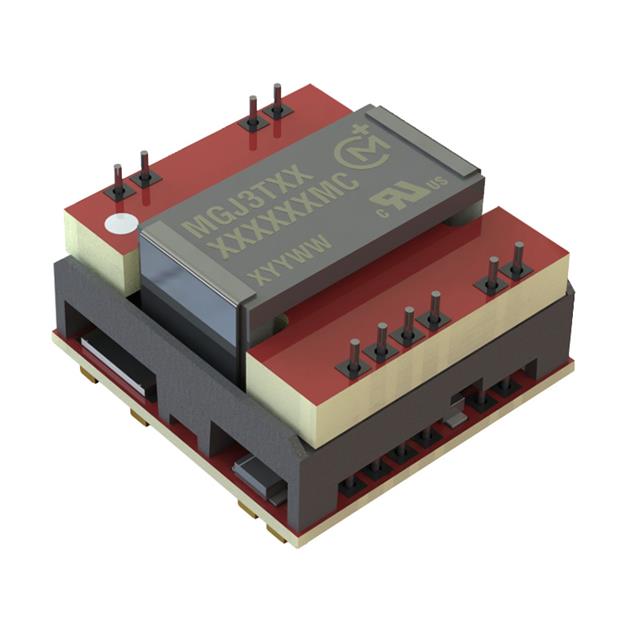

MGJ3T05150505MC-R7

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Technical Specifications

Parameters and characteristics commom to parts in this series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Part	Features	Voltage - Isolation	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Mounting Type	Voltage - Input (Min) [Min]	Type
Murata Power Solutions Inc. MGJ3T05150505MC-R13	SCP, UVLO	5.2 kV	15 V	0.89 in	0.58 "	22.6 mm	14.7 mm	23 mm	0.91 "	7-SMD Module	80 %	9 V	2	ITE (Commercial), Medical	-10 V	120 mA	120 mA	-40 °C	105 ░C	3 W	Surface Mount	4.5 V	Isolated Module
Murata Power Solutions Inc. MGJ3T05150505MC-R7	SCP, UVLO	5.2 kV	15 V	0.89 in	0.58 "	22.6 mm	14.7 mm	23 mm	0.91 "	7-SMD Module	80 %	9 V	2	ITE (Commercial), Medical	-10 V	120 mA	120 mA	-40 °C	105 ░C	3 W	Surface Mount	4.5 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -10V 120mA, 120mA 4.5V - 9V Input
