TB67Z800FTG,EL

Active

Toshiba Semiconductor and Storage

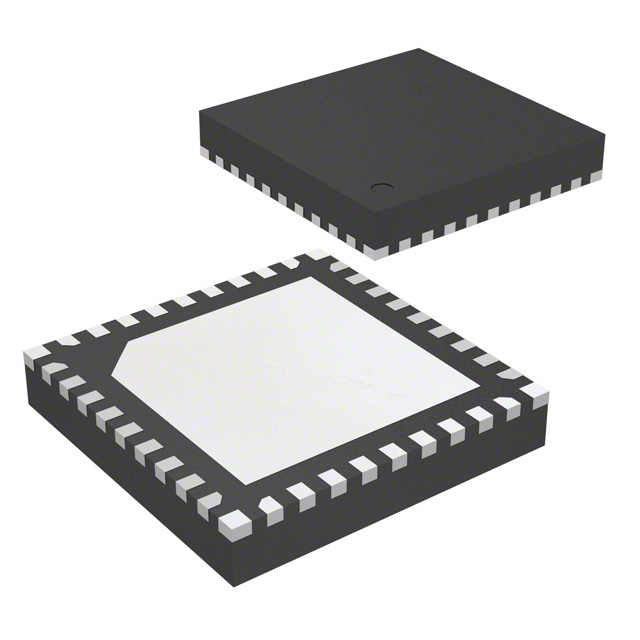

IC HALF BRIDGE DRIVER 3A 36VQFN

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC HALF BRIDGE DRIVER 3A 36VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TB67Z800FTG,EL

Applications	General Purpose
Current - Output / Channel	3 A
Fault Protection	Shoot-Through, Over Temperature, UVLO, Current Limiting
Interface	Logic
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	36-VFQFN Exposed Pad
Supplier Device Package	36-VQFN (5x5)
Voltage - Load [Max]	22 V
Voltage - Load [Min]	5.5 V
Voltage - Supply [Max]	22 V
Voltage - Supply [Min]	5.5 V

Part	Fault Protection	Applications	Current - Output / Channel	Load Type	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration
Toshiba Semiconductor and Storage TB67Z800FTG,EL	Current Limiting Over Temperature Shoot-Through UVLO	General Purpose	3 A	Capacitive Inductive	Logic	5.5 V	22 V	105 °C	-40 °C	Surface Mount	36-VFQFN Exposed Pad	36-VQFN (5x5)	22 V	5.5 V	Half Bridge (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge (3) Driver General Purpose 36-VQFN (5x5)
