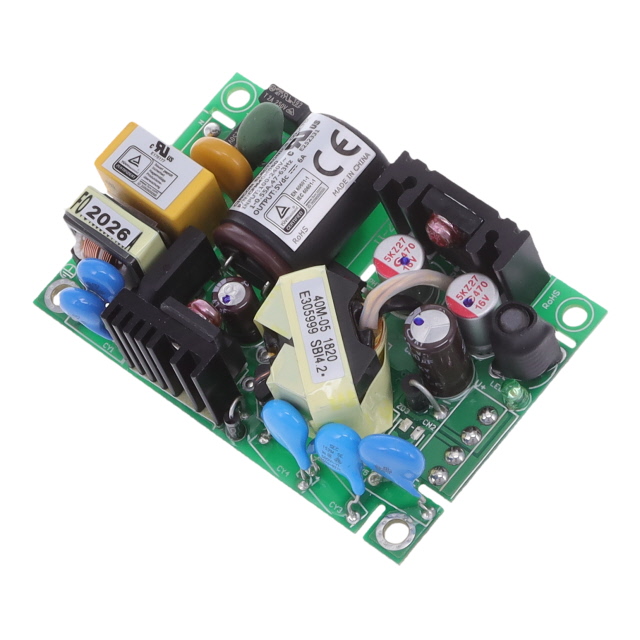

CFM40M050-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 5V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM40M050-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 5V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM40M050-P |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, FCC, TUV |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.00 | |
Description
General part information
CFM40M050 Series
Open Frame AC DC Converters 1 Output 5V 6A 90 ~ 264 VAC Input
