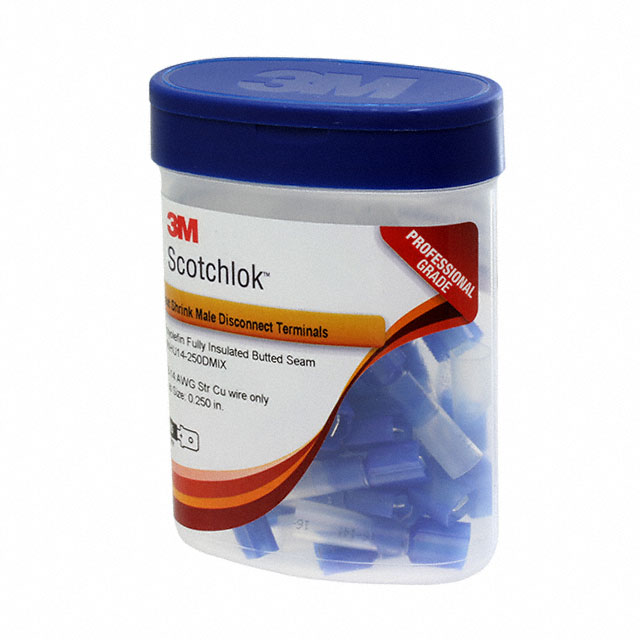

MNHU14-250DMIX-BOTTLE

Active

CONN QC TAB 14-16AWG 0.250 25PC

Search across all available documentation for this part.

Active

CONN QC TAB 14-16AWG 0.250 25PC

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN QC RCPT 14-16AWG 0.250 25PC

Part	Contact Finish	Tab Width	Tab Width	Termination	Insulation	Color	Features	Tab Thickness	Tab Thickness	Gender	Mounting Type	Contact Material	Terminal Type	Length - Overall [x]	Length - Overall [x]
3M MNHU14-250DFIX-BOTTLE	Tin	6.35 mm	0.25 in	Crimp	Fully Insulated Heat Shrink	Blue	Butted Seam	0.032 in	0.81 mm	Female	Free Hanging (In-Line)	Brass	Standard	30.48 mm	1.2 in
3M MNHU14-250DMIK	Tin	6.35 mm	0.25 in	Crimp	Fully Insulated Heat Shrink	Blue	Butted Seam	0.032 in	0.81 mm	Male	Free Hanging (In-Line)	Copper	Standard	30.48 mm	1.2 in
3M MNHU14-250DMIX-BOTTLE	Tin	6.35 mm	0.25 in	Crimp	Fully Insulated Heat Shrink	Blue	Butted Seam	0.032 in	0.81 mm	Male	Free Hanging (In-Line)	Copper	Standard	30.48 mm	1.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Fully Insulated Heat Shrink

Technical documentation and resources

No documents available
