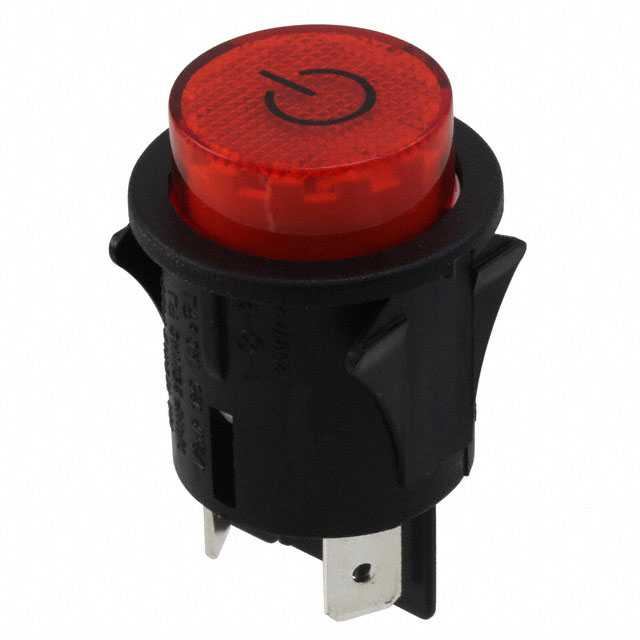

PR142C1011-117

Active

E-Switch

SWITCH PUSHBUTTON DPST 16A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	PR142C1011-117

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	250 VAC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V

Part	Circuit	Termination Style	Mounting Type	Electrical Life	Actuator Type	Type	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch PR142C1200	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Standard	No Marking	White	16 A	25 mm	Off-On	125 V	-20 C	105 ░C
E-Switch PR142C2000-136	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Illuminated Standard	No Marking	Green	16 A	25 mm	Off-On	125 V	-20 C	105 ░C	Green Neon	125 VAC
E-Switch PR142C4000-136	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Illuminated Standard	No Marking	Green	16 A	25 mm	Off-On	125 V	-20 C	105 ░C	Green Neon	125 VAC
E-Switch PR142C1411	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Standard	No Marking		16 A	25 mm	Off-On	125 V	-20 C	105 ░C
E-Switch PR142C1011-117	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Illuminated Standard	No Marking	Red	16 A	25 mm	Off-On	125 V	-20 C	105 ░C	Neon Red	250 VAC
E-Switch PR142C3000-136	DPST	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	10000 Cycles	Button Round	Illuminated Standard	No Marking	Green	16 A	25 mm	Off-On	125 V	-20 C	105 ░C	Green Neon	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard, Illuminated Panel Mount, Snap-In
