ADS54J60EVM
ObsoleteTexas Instruments
EVAL MODULE ADS54J60
ADS54J60EVM
ObsoleteTexas Instruments
EVAL MODULE ADS54J60
Description
General part information
ADS54 Series

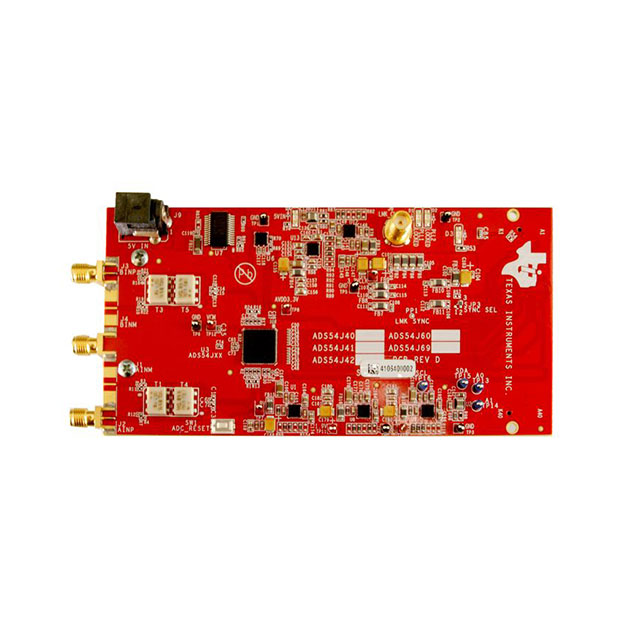

ADS54J60 - 16 Bit 1G Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | ADS54J60EVM |
|---|---|
| Contents | Board, Cable |
| Data Interface | Serial, JESD204B |
| Input Voltage (Value) | 1.9 Vrms |
| Number of A/D Converters | 2 count |
| Number of Bits | 16 bits |
| Power (Typ) | 2.8 W |
| Sampling Rate (Per Second) | 1 GHz |
| Supplied Contents | Board(s), Cable(s) |
| Utilized IC / Part | ADS54J60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
