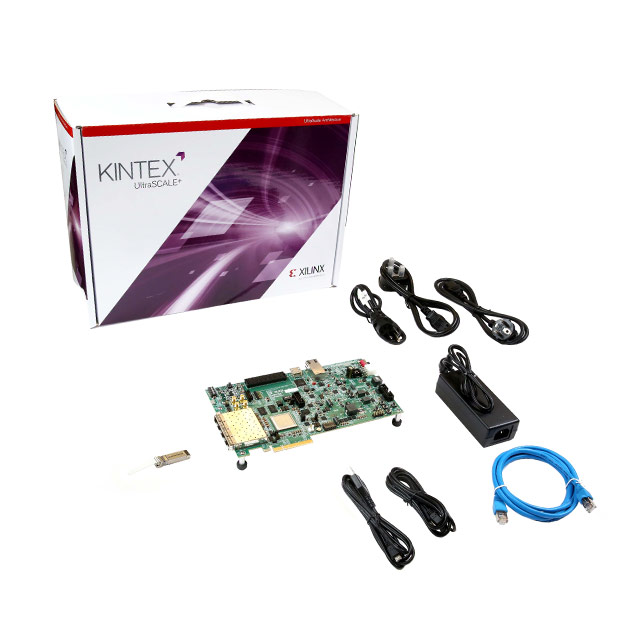

Specification	EK-U1-KCU116-G

Contents	Board, Power Supply, Cable
For Use With/Related Products	XCKU5P
Interconnect System	Pmod, FMC
Platform	Kintex UltraScale+ FPGA KCU116 PCIe Card
Suggested Programming Environment	Vivado
Type	FPGA
Utilized IC / Part	XCKU5P

XCKU5P Series

Part	Mounting Type	Package Width	Package Name	Package Length	Number of Logic Elements/Cells	Total RAM Bits	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Number of LABs/CLBs	Number of I/O	Operating Temperature (Max)	Operating Temperature (Min)	Interconnect System	P/N Breakdown	Suggested Programming Environment	For Use With/Related Products	Utilized IC / Part	Contents	Type	Platform
AMD / Xilinx XCKU5P-1SFVB784I	Surface Mount	23 mm	784-FCBGA	23 mm	474600	41984000 bits	0.876 V	0.825 V	784-BFBGA FCBGA	27120	304	100 °C	-40 °C
AMD / Xilinx EK-U1-KCU116-G-J														FMC Pmod	J = Japan version does not ship with a power supply	Vivado	XCKU5P	XCKU5P	Board Cable(s) - Power Supply Not Included -	FPGA	Kintex UltraScale+ FPGA KCU116 Japan PCIe Card
AMD / Xilinx EK-U1-KCU116-G														FMC Pmod		Vivado	XCKU5P	XCKU5P	Board Cable Power Supply	FPGA	Kintex UltraScale+ FPGA KCU116 PCIe Card

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
