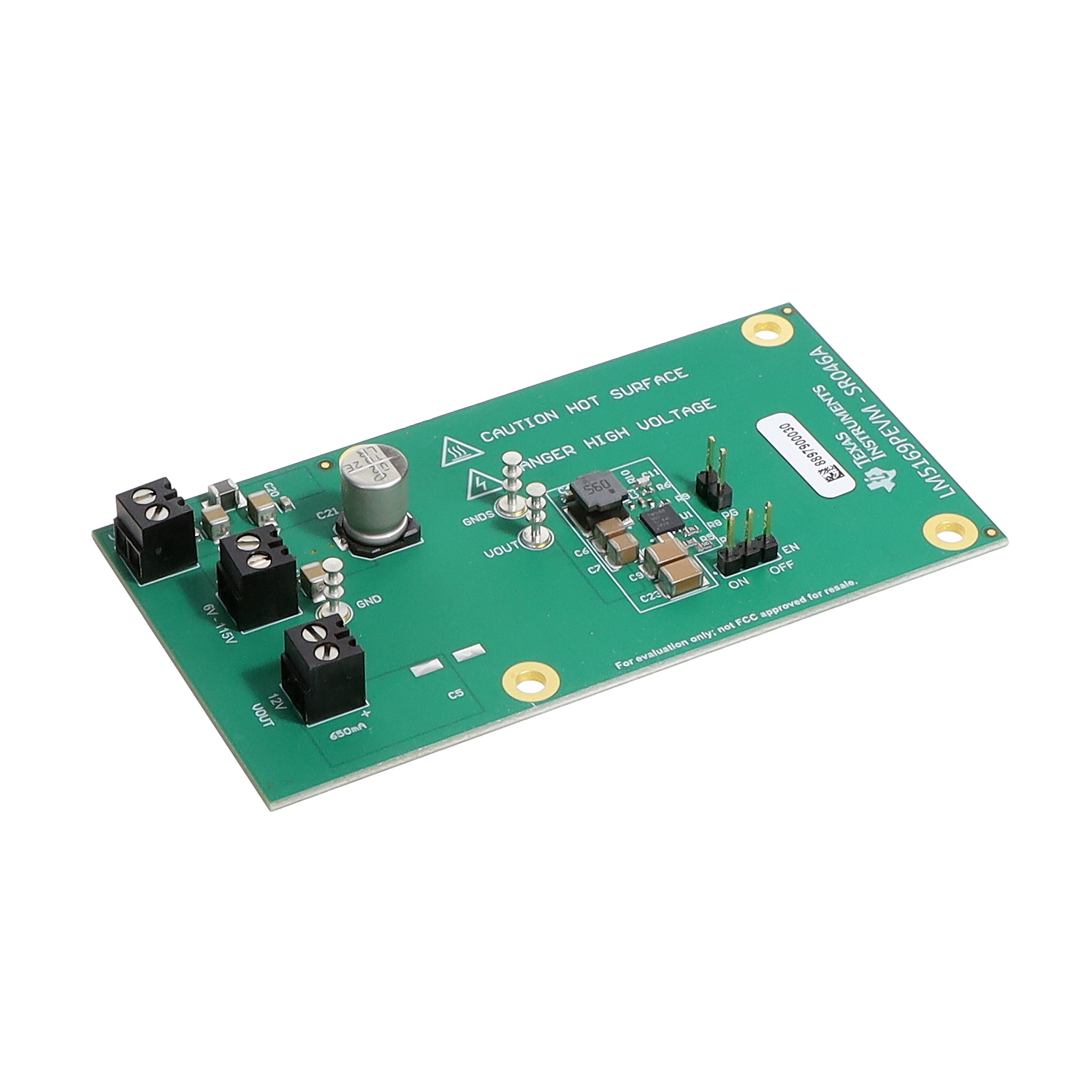

LM5169PEVM
ActiveTexas Instruments
EVAL BOARD FOR LM5169P
LM5169PEVM
ActiveTexas Instruments
EVAL BOARD FOR LM5169P
Description
General part information
LM5169PEVM
EVAL BOARD FOR LM5169P
Technical Specifications
Parameters and characteristics for this part
| Specification | LM5169PEVM |
|---|---|
| Contents | Board |
| Current - Output | 740 mA |
| Frequency - Switching | 500 kHz |
| Isolated Output Count | 1 |
| Main Purpose | DC/DC, Step Down |
| Output Type | Isolated |
| Regulator Topology | Buck |
| Total Output Count | 1 |
| Utilized IC / Part | LM5169PNGUR |
| Voltage - Input (Maximum) | 115 V |
| Voltage - Input (Minimum) | 20 V |
| Voltage - Output | 12.26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
