Specification	RT06103W3SNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-3W3
Shielding	Shielded
Type	For Female Sockets

RT06103 Series

Part	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Shell Finish	Contact Type	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Shell Material	Contact Shape	Fastening Type	Contact Size	Primary Material	Shell Size - Insert	Orientation	Type	Shielding	Material Flammability Rating	Mounting Type	Features	Note	Shell Size - Insert Length	Shell Size - Insert Width
McGill Microwave Systems RT06103W3SNH03	6	125 °C	-40 °C	Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67	Thermoplastic	Zinc Alloy	Circular	Bayonet Lock	16 20	Metal	10-3W3	N (Normal)	For Female Sockets	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Contacts Not Included

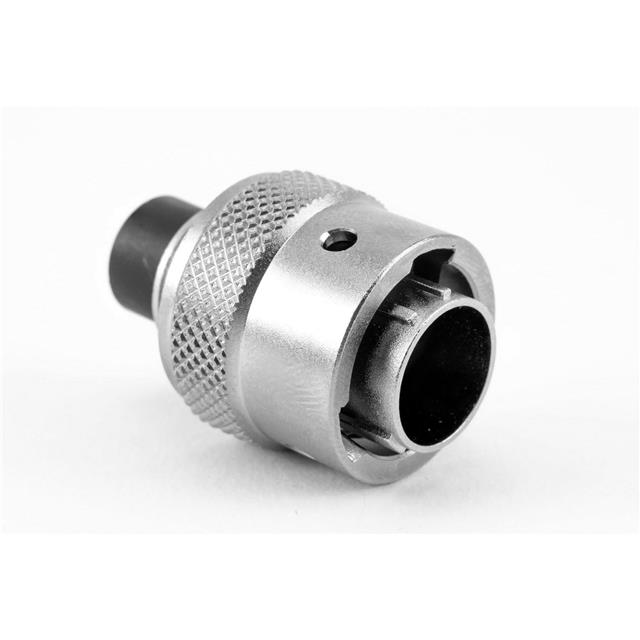

McGill Microwave Systems RT06103W3PNH	6	105 °C	-40 °C	Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67	Thermoplastic	Zinc Alloy	Circular	Bayonet Lock	16 20	Metal	10-3W3	N (Normal)	For Male Pins	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Contacts Not Included
McGill Microwave Systems RT06103PNH	3			Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67		Zinc Alloy		Bayonet Lock	16 S	Metal		N (Normal)	For Male Pins	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut		10 mm	3 mm
McGill Microwave Systems RT06103W3SNH	6	105 °C	-40 °C	Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67	Thermoplastic	Zinc Alloy	Circular	Bayonet Lock	16 20	Metal	10-3W3	N (Normal)	For Female Sockets	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Contacts Not Included
McGill Microwave Systems RT06103PNH03	3			Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67		Zinc Alloy		Bayonet Lock	16 S	Metal		N (Normal)	For Male Pins	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut		10 mm	3 mm
McGill Microwave Systems RT06103SNH03
McGill Microwave Systems RT06103SNH	3			Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67		Zinc Alloy		Bayonet Lock	16 S	Metal		N (Normal)	For Female Sockets	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut		10 mm	3 mm
McGill Microwave Systems RT06103W3PNH03	6	125 °C	-40 °C	Plug Housing	Nickel	Crimp	Silver	Dust Tight Waterproof	IP67	Thermoplastic	Zinc Alloy	Circular	Bayonet Lock	16 20	Metal	10-3W3	N (Normal)	For Male Pins	Shielded	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Contacts Not Included
