42827 Series

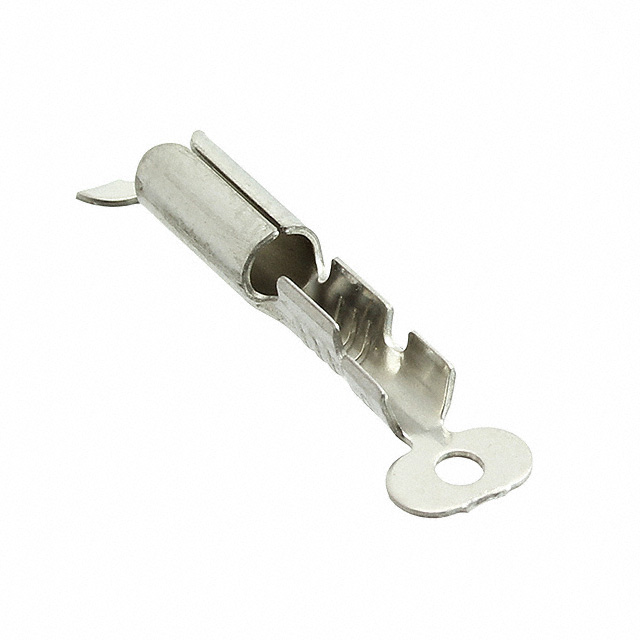

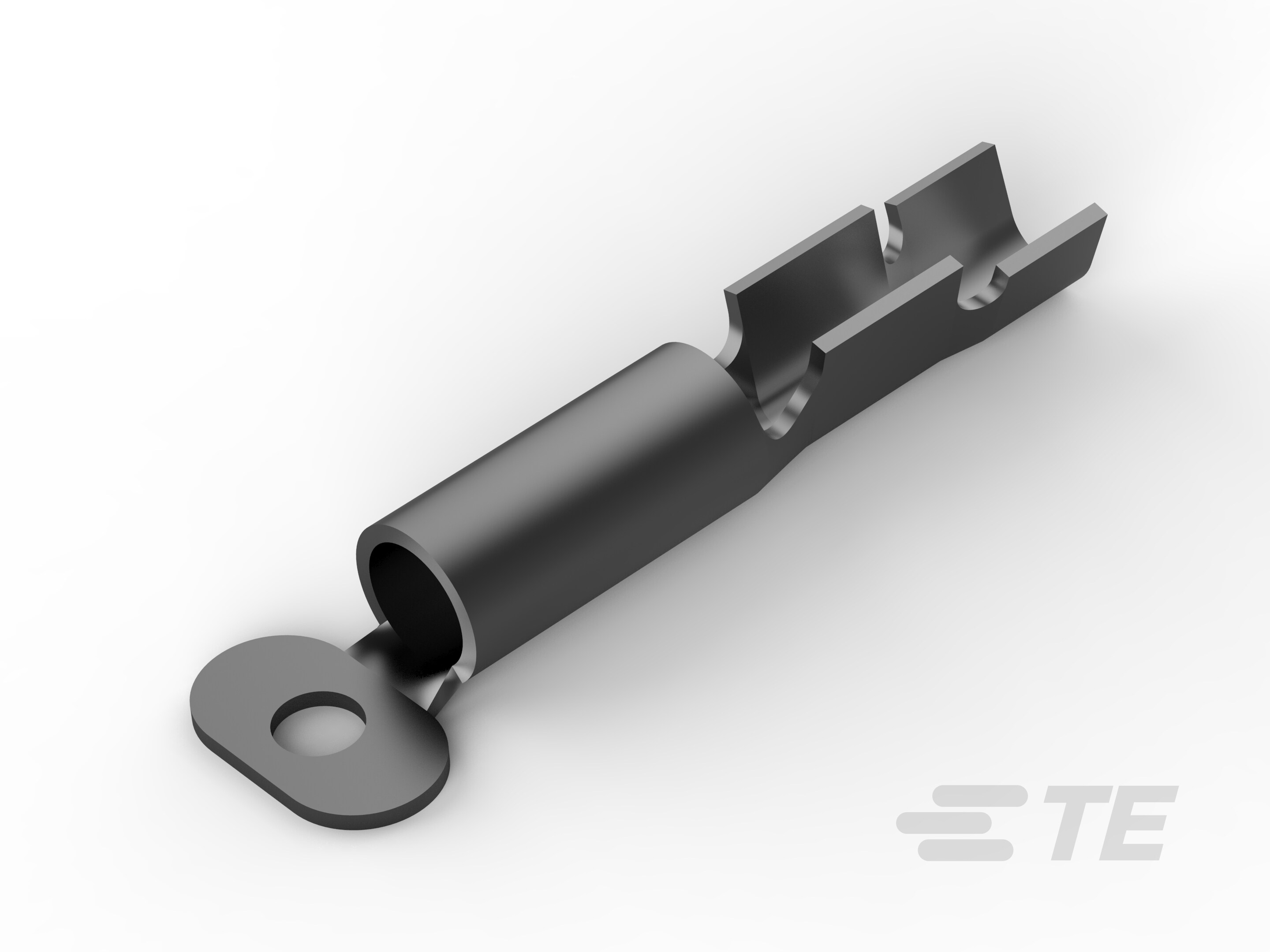

Receptacle, 2.36 mm [.093 in] Pin Diameter, 24 – 18 AWG, .2 – .8 mm² Wire, 404 – 1624 CMA, Open Barrel, Unplated Plating, 14.23 mm [.56 in] Length
Technical Specifications
Parameters and characteristics for this part
| Specification | 42827-4 |
|---|---|
| Contact Material | Steel |
| Diameter - Barrel | 0.093 in |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.085 in |
| Insulation Diameter (Min) | 0.045 in |
| Length - Barrel | 0.25 in |
| Length - Overall | 0.561 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
