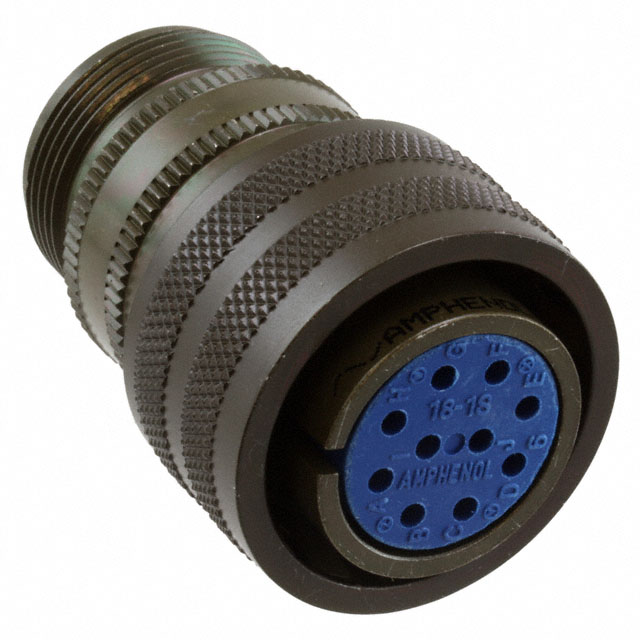

Specification	97-3107A-18-1S

Applications	Automotive, Industrial
Backshell Material	Aluminum Alloy
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Backshell
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Olive Drab Chromate over Cadmium
Primary Material	Metal
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	18 mm
Shell Size - Insert Width	1 mm
Shielding	Unshielded
Termination	Solder Cup

97-3107A18 Series

Part	Number of Positions	Mounting Type	Applications	Shielding	Color	Primary Material	Contact Material	Insert Material	Contact Finish - Mating	Shell Finish	Backshell Material	Plating	Orientation	Connector Type	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Termination	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material
Amphenol Aerospace Operations 97-3107A-18-850
Amphenol Aerospace Operations 97-3107A-18-1S	10	Free Hanging (In-Line)	Automotive Industrial	Unshielded	Olive Drab	Metal	Copper Alloy	DAP Diallyl Phthalate	Silver	Cadmium Olive Drab Chromate	Aluminum Alloy	Olive Drab Chromate over Cadmium	N (Normal)	Female Sockets Plug	Push-Pull	125 °C	-55 °C	Backshell	Solder Cup	18 mm	1 mm	Aluminum Alloy
