Specification	RJF22G15100BTX

Cable Type	Round Cable
Color	Gray
Connector Type	Jack to Plug, Ethernet, RJ45
Features	Circular Bayonet Coupling, Molded Plugs
Length	4.92 ft
Mounting Type	Panel Mount, Flange
Number of Contacts	8
Number of Positions	8
Shielding	Shielded
Style	Cat5e, Industrial Environments - IP68

RJF22 Series

Part	Features	Shielding	Mounting Type	Tab Direction	Number of Positions	Connector Type	Number of Contacts	Ratings	LED Color	Termination	Ingress Protection Description	Ingress Protection IP Rating	Number of Ports	Number of Rows	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Length	Cable Type	Style	Color	Convert To (Adapter End)	Type	Convert From (Adapter End)
McGill Microwave Systems RJF22B00	Circular Bayonet Coupling	Unshielded	Panel Mount Square Flange	User Selectable	8	Ethernet Jack RJ45	8	Cat5e	Does Not Contain LED	PC Board Solder	Dust Tight Waterproof	IP67	1	1	Straight	-40 °C	85 °C

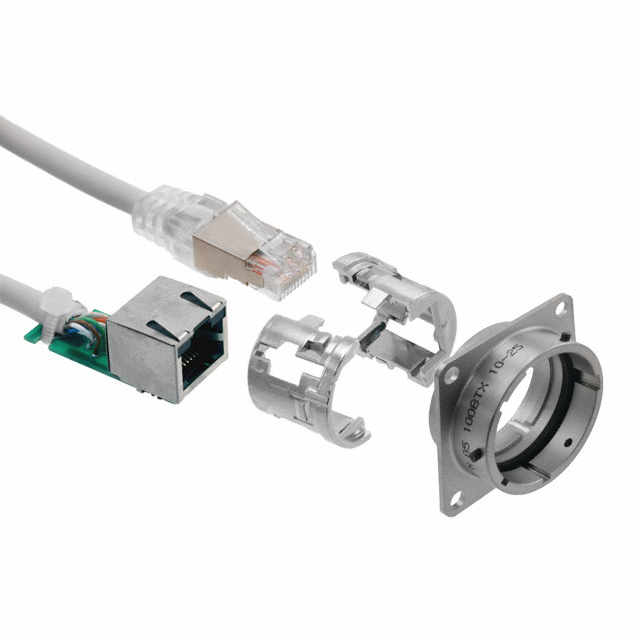

McGill Microwave Systems RJF22B10100BTX	Circular Bayonet Coupling Molded Plugs	Shielded	Flange Panel Mount		8	Ethernet Jack to Plug RJ45	8											3.28 ft	Round Cable	Cat5e Industrial Environments - IP68	Gray
McGill Microwave Systems RJF22G05100BTX	Circular Bayonet Coupling Molded Plugs	Shielded	Flange Panel Mount		8	Ethernet Jack to Plug RJ45	8											1.64 ft	Round Cable	Cat5e Industrial Environments - IP68	Gray
McGill Microwave Systems RJF22ZN00	Circular Bayonet Coupling	Unshielded	Panel Mount Square Flange	User Selectable	8	Ethernet Jack RJ45	8	Cat5e	Does Not Contain LED	PC Board Solder	Dust Tight Waterproof	IP67	1	1	Straight	-40 °C	85 °C
McGill Microwave Systems RJF22N03100BTX	Circular Bayonet Coupling Molded Plugs	Shielded	Flange Panel Mount		8	Ethernet Jack to Plug RJ45	8											0.98 ft	Round Cable	Cat5e Industrial Environments - IP68	Gray
McGill Microwave Systems RJF22N00SCC	Circular Bayonet Coupling	Shielded	Panel Mount Right Angle Square Flange					Cat5e								-40 °C	85 °C					8p8c (RJ45) Jack	Coupler	8p8c (RJ45) Jack
McGill Microwave Systems RJF22B00SCC		Unshielded	Panel Mount Square Flange	User Selectable	8	Ethernet Jack RJ45	8	Cat5e	Does Not Contain LED	PC Board Solder	Dust Tight Waterproof	IP68	1	1	Straight	-40 °C	85 °C
McGill Microwave Systems RJF22G15100BTX	Circular Bayonet Coupling Molded Plugs	Shielded	Flange Panel Mount		8	Ethernet Jack to Plug RJ45	8											4.92 ft	Round Cable	Cat5e Industrial Environments - IP68	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RJ Field Series Brochure

RJF22G15100BTX | Datasheet
