901-9244-1SF

Active

McGill Microwave Systems

RF CONNECTORS / COAXIAL CONNECTORS SMA

901-9244-1SF

Active

McGill Microwave Systems

RF CONNECTORS / COAXIAL CONNECTORS SMA

Description Specifications Series Pricing CAD Documents

Description

General part information

SMA Series

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder

Technical Specifications

Parameters and characteristics for this part

Specification	901-9244-1SF

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Recepture, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Features	Extended Insulation
Frequency - Max	12.4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

SMA Series

...

Part	Accessory Type	Color	Connector Style	Body Finish	For Use With/Related Products	Body Material	Impedance	Shield Termination	Center Contact Material	Mounting Type	Frequency - Max	Fastening Type	Number of Ports	Contact Termination	Cable Group	Housing Color	Connector Type	Mounting Feature	Features	Mating Cycles	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Adapter Series	Adapter Type	Center Gender	Conversion Type	Convert From (Adapter End)	Style	Convert To (Adapter End)	Convert To (Adapter End) Count	Contact Material	Contact Finish	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Ingress Protection	Voltage Rating	Includes	Includes Total Count	Attenuation Value	Power (Watts)	Frequency Range (Min)	Frequency Range (Max)	Package / Case	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)

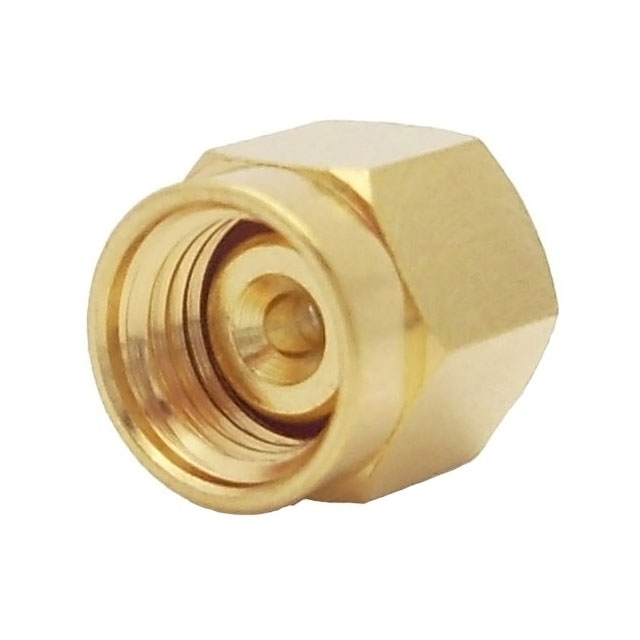

McGill Microwave Systems 132364	Cap (Cover)	Gold	RP-SMA	Gold	RP-SMA Jacks	Brass
McGill Microwave Systems 132131			SMA				50 Ohm	Clamp	Brass	Free Hanging (In-Line) Right Angle	12.4 GHz	Threaded	1	Solder	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Male Pin Plug
McGill Microwave Systems 901-9244-1SF			SMA			Stainless Steel	50 Ohm	Solder	Beryllium Copper	Panel Mount	12.4 GHz	Threaded	1	Solder		Silver	Female Socket Recepture	Flange	Extended Insulation	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C
McGill Microwave Systems M55339/30-30101							50 Ohm			Free Hanging (In-Line)	12.4 GHz	Threaded									Gold				SMA to SMA	Plug to Jack	Female Male	Same Series	Male Pin SMA Plug	T-Shape	Female Socket SMA Jack	2 count

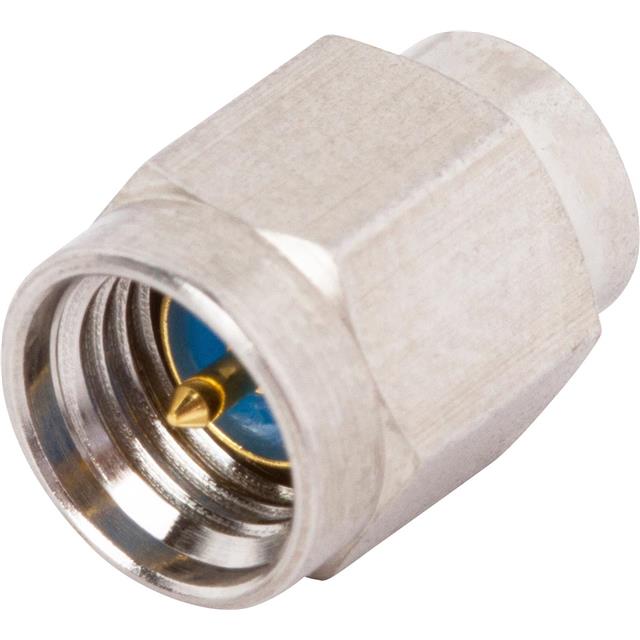

McGill Microwave Systems SF8018-6005			SMA			Stainless Steel	50 Ohm			Cap Free Hanging	18 GHz						Male Pin Plug					Polytetrafluoroethylene (PTFE)											Brass	Gold

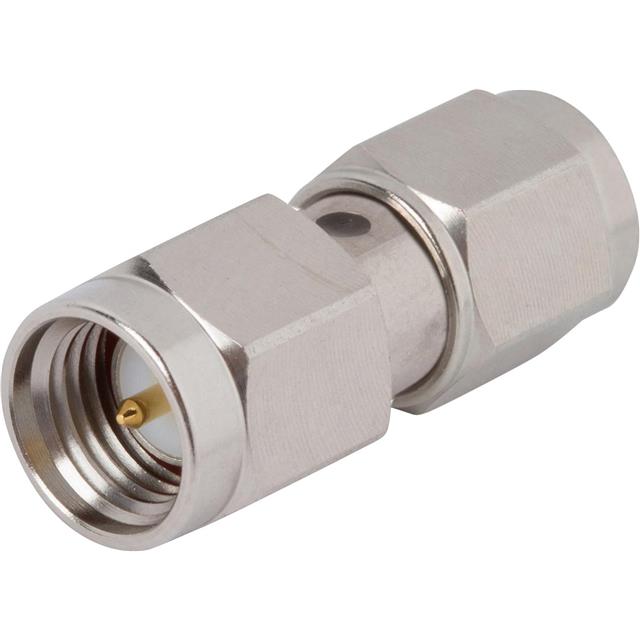

McGill Microwave Systems SF2993-6001						Stainless Steel	50 Ohm		Beryllium Copper	Free Hanging (In-Line)	18 GHz	Threaded								500 cycles	Gold	Polytetrafluoroethylene (PTFE)			SMA to SMA	Plug to Plug	Male	Same Series	Male Pin SMA Plug	Straight					SMA Plug	Male Pin
McGill Microwave Systems 2985-6004-TD			SMA				50 Ohm	Solder	Beryllium Copper	Through Hole	18 GHz	Threaded	1	Solder		Gold	Female Socket Jack
McGill Microwave Systems 901-128-11			SMA	Gold		Beryllium Copper	50 Ohm	Clamp	Beryllium Copper	Free Hanging (In-Line)	12.4 GHz	Threaded	1	Solder	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Male Pin Plug			500 cycles	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C													Weatherproof	375 V	Clamp Connector Contact	3 pcs
McGill Microwave Systems M3933/16-32N							50 Ohm																																		13 dB	2 w	0 Hz	18 GHz	SMA In-Line Module
McGill Microwave Systems 901-9221-2ASF			SMA			Stainless Steel	50 Ohm	Solder	Beryllium Copper	Free Hanging (In-Line) Right Angle	18 GHz	Threaded	1	Solder	RG-405	Silver	Male Pin Plug			500 cycles	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C																						0.085 in	0.086 in
