SBCV1522KK

Active

RES 22K OHM 10% 17W RADIAL

Active

RES 22K OHM 10% 17W RADIAL

Description

General part information

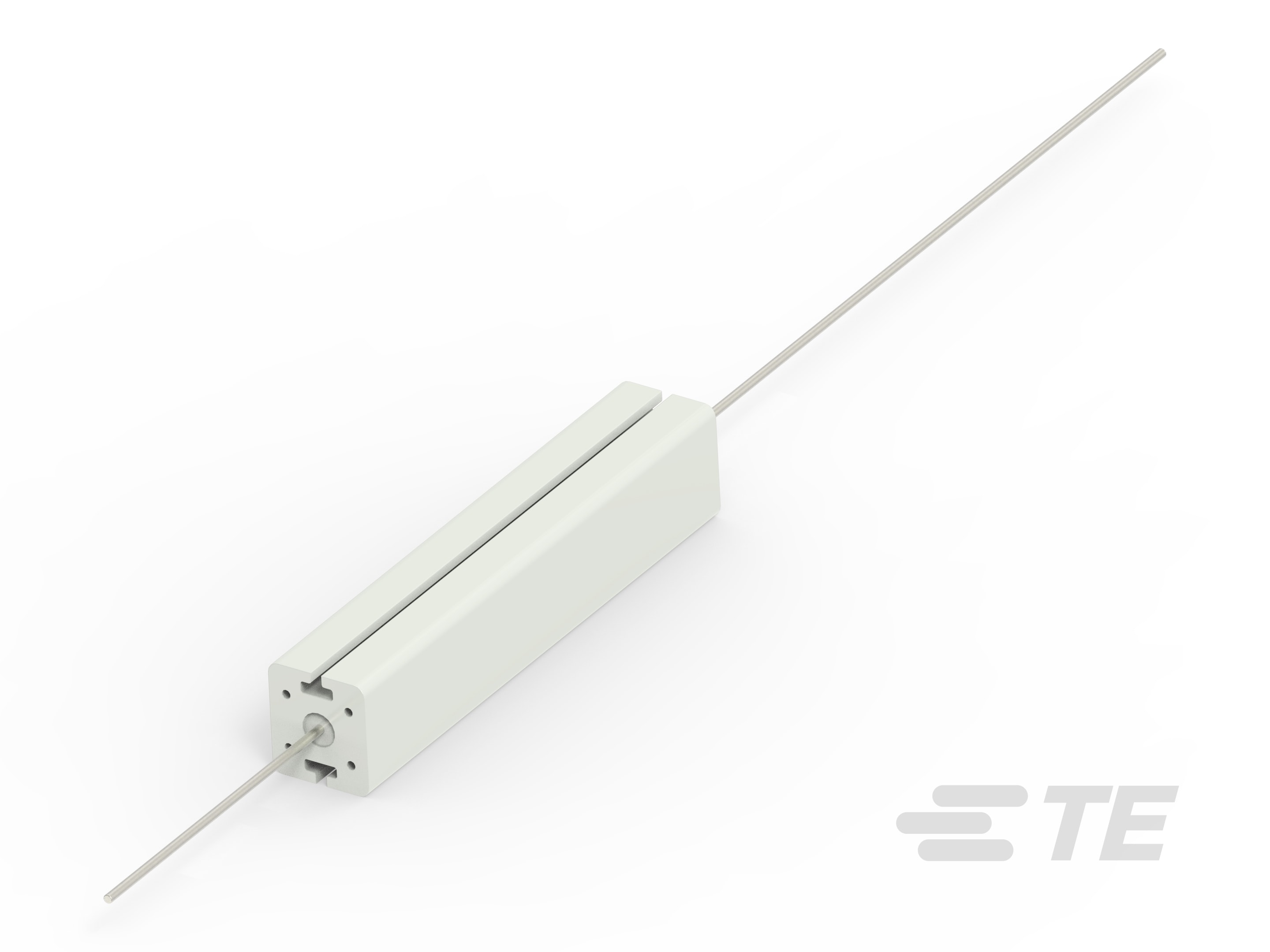

22K ohm, Through-Hole Power Resistor, Wire Wound, 17 W, 10 %, ±200 ppm/°C, Axial-Leaded, Copper Termination, 75 x 9 x 10 mm, CGS SBC

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Features	Resistance	Number of Terminations	Temperature Coefficient	Power (Watts)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Composition	Tolerance	Package / Case	Size / Dimension Shape	Height - Seated (Max)
TE Connectivity AMP Connectors SBCHE65K6J	350 °C	-55 °C	Flame Proof Safety	5.6 kOhm	2	200 ppm/°C	7 W	1.496 in	0.276 in	0.315 in	Wirewound	5 %	Axial Radial Formed
TE Connectivity AMP Connectors SBCH66K8J	350 °C	-55 °C	Flame Proof Safety	6.8 kOhm	2	200 ppm/°C	7 W	1.496 in	0.276 in	0.315 in	Wirewound	5 %	Axial
TE Connectivity AMP Connectors SBCHE6560RJ	350 °C	-55 °C	Flame Proof Safety	560 Ohm	2	200 ppm/°C	7 W	1.496 in	0.276 in	0.315 in	Wirewound	5 %	Axial Radial Formed
TE Connectivity AMP Connectors SBCHE116K8J
TE Connectivity AMP Connectors SBC2R47K	350 °C	-55 °C	Flame Proof Safety	470 mOhms	2	400 ppm/°C	4 W		0.252 in	0.787 in	Wirewound	10 %	Axial	Square
TE Connectivity AMP Connectors SBC822KJ	350 °C	-55 °C	Flame Proof Safety	22 kOhm	2	200 ppm/°C	9 W		0.354 in	1.496 in	Wirewound	5 %	Axial	Square
TE Connectivity AMP Connectors SBCHE6560RJ
TE Connectivity AMP Connectors SBCHE151R5K	350 °C	-55 °C	Flame Proof Safety	1.5 Ohm	2	400 ppm/°C	17 W	0.354 in	0.394 in	2.953 in	Wirewound	10 %	Axial Radial Formed	Rectangular
TE Connectivity AMP Connectors SBCHE61K8J
TE Connectivity AMP Connectors SBCV1522KK	350 °C	-55 °C	Flame Proof Safety	22 kOhm	2	200 ppm/°C	17 W		0.354 in	0.394 in	Wirewound	10 %	Radial		2.953 in
