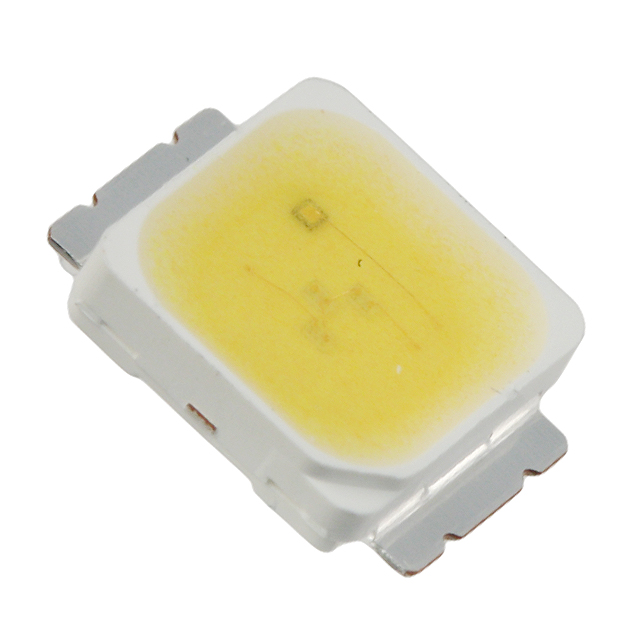

MX3SWT-A1-0000-000CE4

Obsolete

CreeLED, Inc.

LED XLAMP NEUTRAL WHT 4500K SMD

MX3SWT-A1-0000-000CE4

Obsolete

CreeLED, Inc.

LED XLAMP NEUTRAL WHT 4500K SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

MX3SWT Series

LED Lighting XLamp® MX-3S White, Neutral 4500K 10.7V 115mA 120° 2-SMD, Gull Wing Exposed Pad

Technical Specifications

Parameters and characteristics for this part

Specification	MX3SWT-A1-0000-000CE4

CCT (K)	4500 K
Color	White, Neutral
CRI (Color Rendering Index) (Typ)	75
Current - Max	175 mA
Current - Test	115 mA
Flux (Maximum)	107 lm
Flux (Minimum)	100 lm
Flux (Nominal)	104 lm
Height - Seated (Max)	0.058 in
Lumens/Watt	85 lm/W
Mounting Type	Surface Mount
Package / Case	Gull Wing Exposed Pad, 2-SMD
Package Name	SMD
Size / Dimension Length	0.197 in
Size / Dimension Width	0.197 in
Thermal Resistance of Package	11 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	10.7 V

MX3SWT Series

...

Part	Package / Case	Flux (Minimum)	Flux (Nominal)	Flux (Maximum)	Current - Max	Voltage - Forward (Vf) (Typ)	Current - Test	Height - Seated (Max)	CRI (Color Rendering Index) (Typ)	Lumens/Watt	CCT (K)	Size / Dimension Length	Size / Dimension Width	Mounting Type	Viewing Angle	Color	Package Name	Thermal Resistance of Package
CreeLED, Inc. MX3SWT-A1-R250-000DE4	2-SMD Gull Wing Exposed Pad	107 lm	111 lm	114 lm	175 mA	10.7 V	115 mA	0.058 in	75	90 lm/W	4500 K	0.197 in	0.197 in	Surface Mount	120 °	Neutral White	SMD
CreeLED, Inc. MX3SWT-A1-R250-000E50	2-SMD Gull Wing Exposed Pad	114 lm	118 lm	122 lm	175 mA	10.7 V	115 mA	0.058 in	75	96 lm/W	6000 K	0.197 in	0.197 in	Surface Mount	120 °	Cool White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-R250-0009B6	2-SMD Gull Wing Exposed Pad	81 lm	84 lm	87 lm	175 mA	10.7 V	115 mA	0.058 in		68 lm/W		0.197 in	0.197 in	Surface Mount	120 °	White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-R250-000DF4	2-SMD Gull Wing Exposed Pad	107 lm	111 lm	114 lm	175 mA	10.7 V	115 mA	0.058 in	75	90 lm/W	4750 K	0.197 in	0.197 in	Surface Mount	120 °	Neutral White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-R250-000DA2	2-SMD Gull Wing Exposed Pad	107 lm	111 lm	114 lm	175 mA	10.7 V	115 mA	0.058 in	75	90 lm/W	4750 K	0.197 in	0.197 in	Surface Mount	120 °	Neutral White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-R250-000D50	2-SMD Gull Wing Exposed Pad	107 lm	111 lm	114 lm	175 mA	10.7 V	115 mA	0.058 in	75	90 lm/W	6000 K	0.197 in	0.197 in	Surface Mount	120 °	Cool White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-R250-000BB1	2-SMD Gull Wing Exposed Pad	94 lm	97 lm	100 lm	175 mA	10.7 V	115 mA	0.058 in		79 lm/W		0.197 in	0.197 in	Surface Mount	120 °	White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-0000-000BDZ	2-SMD Gull Wing Exposed Pad	94 lm	97 lm	100 lm	175 mA	10.7 V	115 mA	0.058 in	75	79 lm/W	5000 K	0.197 in	0.197 in	Surface Mount	120 °	Cool White	SMD	11 °C/W
CreeLED, Inc. MX3SWT-A1-0000-000CE4	2-SMD Gull Wing Exposed Pad	100 lm	104 lm	107 lm	175 mA	10.7 V	115 mA	0.058 in	75	85 lm/W	4500 K	0.197 in	0.197 in	Surface Mount	120 °	Neutral White	SMD
CreeLED, Inc. MX3SWT-A1-0000-000AA7	2-SMD Gull Wing Exposed Pad	87 lm	91 lm	94 lm	175 mA	10.7 V	115 mA	0.058 in	80	74 lm/W	3250 K	0.197 in	0.197 in	Surface Mount	120 °	Warm White	SMD	11 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
