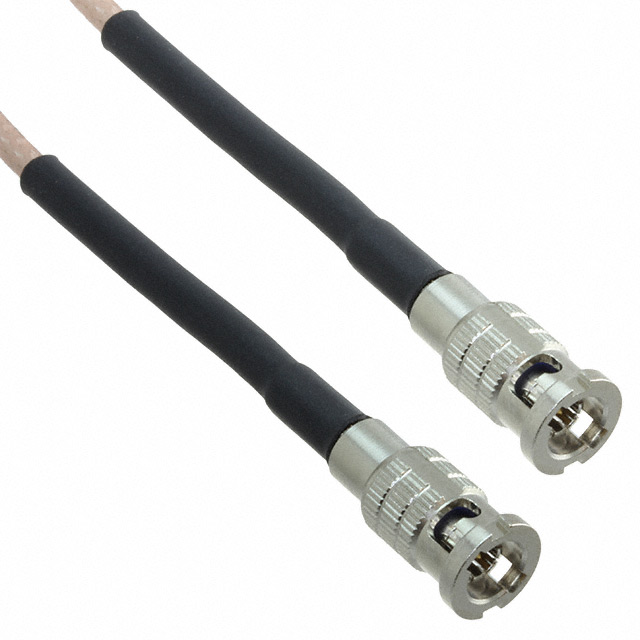

Specification	095-850-185M010

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG, 316
Color	Copper
Frequency - Max	6000 MHz
Length	3.937 in
Overall Impedance	50 Ohms
Style	HD-BNC

095-850 Series

...

Part	Length	Cable Type	2nd Contact Gender	1st Connector	Overall Impedance	Features	2nd Connector Mounting Type	Frequency - Max	Style	1st Connector Mounting Type	Color	2nd Connector	1st Contact Gender	1st Connector Dimension (1)	1st Connector Type	1st Connector - Type	1st Connector Size (Dimension 2)	1st Connector Size (Dimension 1)	1st Connector Dimension (2)	Length (ft)	Operating Temperature (Min)	Operating Temperature (Max)	Cable Impedance	Cable Type Size	1st Connector Mounting Feature	Cable Outer Diameter
McGill Microwave Systems 095-850-218L050	15.24 m	Belden 4694R	Male	BNC Plug	75 Ohms	Shielded	Free Hanging (In-Line)	12 Gbps	BNC HD-BNC	Free Hanging (In-Line)	Black	HD-BNC Plug	Male
McGill Microwave Systems 095-850-157M075	29.53 in	Belden 1694A	Male	1.0/2.3 Plug	75 Ohms	Shielded	Free Hanging (In-Line)	4 GHz	1.0/2.3 to HD-BNC	Free Hanging (In-Line)	Black	HD-BNC Plug	Male	1 mm	Plug	Plug	2.3 mm 2.3	1 mm 1	2.3 mm
McGill Microwave Systems 095-850-215M150	59.1 in	Belden 4505R	Male	BNC Jack	75 Ohms	Shielded	Free Hanging (In-Line)	12 Gbps	BNC HD-BNC	Free Hanging (In-Line)	Black	HD-BNC Plug	Female							4.9 ft
McGill Microwave Systems 095-850-261-012	12 in	174 RG	Female	BNC Jack	50 Ohms	Shielded	Free Hanging (In-Line)	6000 MHz	BNC	Free Hanging (In-Line)	Black	BNC Jack	Female								-40 °C	85 °C	50 Ohms
McGill Microwave Systems 095-850-279M500	196.9 in	LMR	Male	BNC Plug	50 Ohms		Free Hanging (In-Line)	3 GHz	BNC	Free Hanging (In-Line)	Black	BNC Plug	Male								-40 °C	85 °C	50 Ohms	400
McGill Microwave Systems 095-850-157M050	19.69 in	Belden 1694A	Male	1.0/2.3 Plug	75 Ohms	Shielded	Free Hanging (In-Line)	4 GHz	1.0/2.3 to HD-BNC	Free Hanging (In-Line)	Black	HD-BNC Plug	Male	1 mm	Plug	Plug	2.3 mm 2.3	1 mm 1	2.3 mm
McGill Microwave Systems 095-850-210-150	5.906 in	178 RG	Female	BNC Jack	50 Ohms	Shielded	Free Hanging (In-Line)	4 GHz	AMC BNC U.FL (UMCC)	Panel Mount	Copper	AMC Plug Right Angle U.FL (UMCC)	Female										50 Ohms		Bulkhead Front Side Nut
McGill Microwave Systems 095-850-287-150	5.906 in	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	Female	TNC Jack	50 Ohms		Free Hanging (In-Line)	6000 MHz	AMC4 to TNC	Panel Mount	Black	AMC4 Plug Right Angle	Female								-40 °C	90 °C		1.13	Bulkhead Front Side Nut	1.13 mm
McGill Microwave Systems 095-850-164-006	0.5 ft	Belden 1855A	Male	BNC Plug	75 Ohms	Shielded	Free Hanging (In-Line)	4 GHz	BNC	Free Hanging (In-Line)	Black	BNC Plug	Male
McGill Microwave Systems 095-850-216M050	19.69 in	Belden 4694R	Male	BNC Jack	75 Ohms	Shielded	Free Hanging (In-Line)	12 Gbps	BNC HD-BNC	Free Hanging (In-Line)	Black	HD-BNC Plug	Female
