095-850 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CBL ASSY BNC-HDBNC PLUG-PLUG 50'
| Part | Length | Cable Type | 2nd Contact Gender | 1st Connector | Overall Impedance | Features | 2nd Connector Mounting Type | Frequency - Max | Style | 1st Connector Mounting Type | Color | 2nd Connector | 1st Contact Gender | 1st Connector Dimension (1) | 1st Connector Type | 1st Connector - Type | 1st Connector Size (Dimension 2) | 1st Connector Size (Dimension 1) | 1st Connector Dimension (2) | Length (ft) | Operating Temperature (Min) | Operating Temperature (Max) | Cable Impedance | Cable Type Size | 1st Connector Mounting Feature | Cable Outer Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 15.24 m | Belden 4694R | Male | BNC Plug | 75 Ohms | Shielded | Free Hanging (In-Line) | 12 Gbps | BNC HD-BNC | Free Hanging (In-Line) | Black | HD-BNC Plug | Male | |||||||||||||
 McGill Microwave Systems | 29.53 in | Belden 1694A | Male | 1.0/2.3 Plug | 75 Ohms | Shielded | Free Hanging (In-Line) | 4 GHz | 1.0/2.3 to HD-BNC | Free Hanging (In-Line) | Black | HD-BNC Plug | Male | 1 mm | Plug | Plug | 2.3 mm 2.3 | 1 mm 1 | 2.3 mm | |||||||

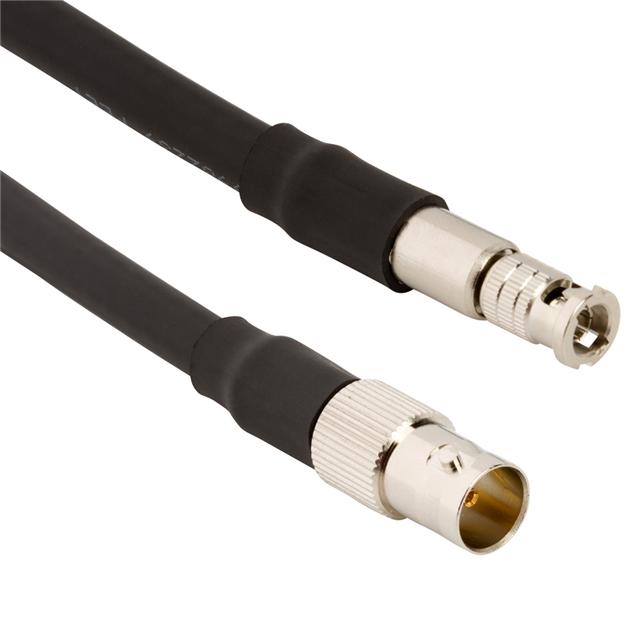

 McGill Microwave Systems | 59.1 in | Belden 4505R | Male | BNC Jack | 75 Ohms | Shielded | Free Hanging (In-Line) | 12 Gbps | BNC HD-BNC | Free Hanging (In-Line) | Black | HD-BNC Plug | Female | 4.9 ft | ||||||||||||
 McGill Microwave Systems | 12 in | 174 RG | Female | BNC Jack | 50 Ohms | Shielded | Free Hanging (In-Line) | 6000 MHz | BNC | Free Hanging (In-Line) | Black | BNC Jack | Female | -40 °C | 85 °C | 50 Ohms | ||||||||||
 McGill Microwave Systems | 196.9 in | LMR | Male | BNC Plug | 50 Ohms | Free Hanging (In-Line) | 3 GHz | BNC | Free Hanging (In-Line) | Black | BNC Plug | Male | -40 °C | 85 °C | 50 Ohms | 400 | ||||||||||
McGill Microwave Systems | 19.69 in | Belden 1694A | Male | 1.0/2.3 Plug | 75 Ohms | Shielded | Free Hanging (In-Line) | 4 GHz | 1.0/2.3 to HD-BNC | Free Hanging (In-Line) | Black | HD-BNC Plug | Male | 1 mm | Plug | Plug | 2.3 mm 2.3 | 1 mm 1 | 2.3 mm | |||||||
 McGill Microwave Systems | 5.906 in | 178 RG | Female | BNC Jack | 50 Ohms | Shielded | Free Hanging (In-Line) | 4 GHz | AMC BNC U.FL (UMCC) | Panel Mount | Copper | AMC Plug Right Angle U.FL (UMCC) | Female | 50 Ohms | Bulkhead Front Side Nut | |||||||||||

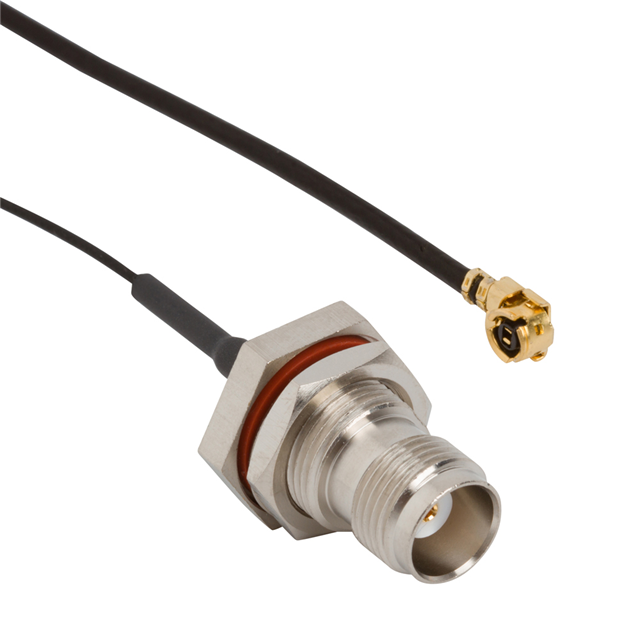

 McGill Microwave Systems | 5.906 in | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | Female | TNC Jack | 50 Ohms | Free Hanging (In-Line) | 6000 MHz | AMC4 to TNC | Panel Mount | Black | AMC4 Plug Right Angle | Female | -40 °C | 90 °C | 1.13 | Bulkhead Front Side Nut | 1.13 mm | |||||||||
 McGill Microwave Systems | 0.5 ft | Belden 1855A | Male | BNC Plug | 75 Ohms | Shielded | Free Hanging (In-Line) | 4 GHz | BNC | Free Hanging (In-Line) | Black | BNC Plug | Male | |||||||||||||
 McGill Microwave Systems | 19.69 in | Belden 4694R | Male | BNC Jack | 75 Ohms | Shielded | Free Hanging (In-Line) | 12 Gbps | BNC HD-BNC | Free Hanging (In-Line) | Black | HD-BNC Plug | Female |
