XPLBWT Series

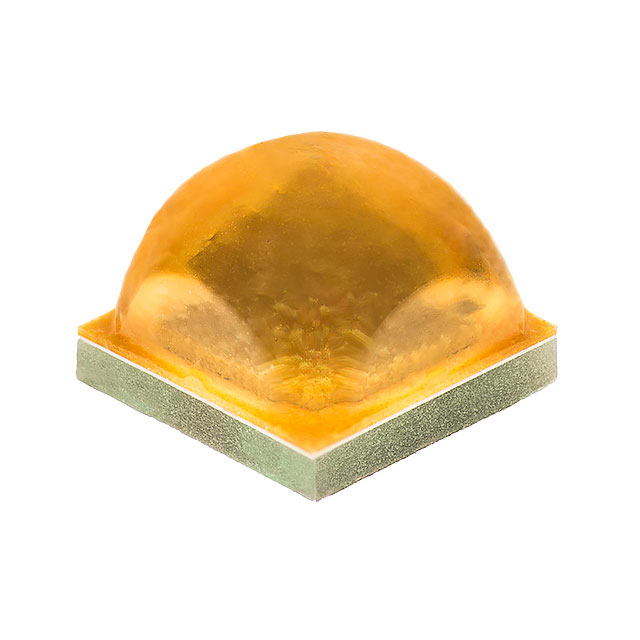

LED Lighting XLamp® XP-L2 White, Cool 6500K 2.79V 1.05A 125° 1414 (3535 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	XPLBWT-00-0000-000UV20CB

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	90
Current - Max	3 A
Current - Test	1.05 A
Flux (Maximum)	420 lm
Flux (Minimum)	400 lm
Flux (Typical)	410 lm
Height - Seated (Max)	0.111 in
Lumens/Watt	140 lm/W
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	1414
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Thermal Resistance of Package	0.6 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.79 V

XPLBWT Series

...

Part	CCT (K)	Package / Case	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Color	Mounting Type	Thermal Resistance of Package	Viewing Angle	Flux (Maximum)	Flux (Typical)	Flux (Minimum)	Size / Dimension Length	Size / Dimension Width	Package Name	Current - Test	Height - Seated (Max)	Current - Max	Lumens/Watt	CCT Description
CreeLED, Inc. XPLBWT-00-0000-000UV20CB	6500 K	1414 (3535 Metric)	90	2.79 V	Cool White	Surface Mount	0.6 °C/W	125 °	420 lm	410 lm	400 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	140 lm/W
CreeLED, Inc. XPLBWT-00-0000-0000V40E1	6500 K	1414 (3535 Metric)		2.82 V	Cool White	Surface Mount	2.2 °C/W	125 °	460 lm	450 lm	440 lm	0.136 in	0.136 in	2-SMD	1.05 A	0.111 in	3 A	152 lm/W
CreeLED, Inc. XPLBWT-00-0000-000UV20E2	5700 K	1414 (3535 Metric)	90	2.79 V	Cool White	Surface Mount	0.6 °C/W	125 °	420 lm	410 lm	400 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	140 lm/W
CreeLED, Inc. XPLBWT-00-0000-000UV240H	4000 K	1414 (3535 Metric)	90	2.79 V	Neutral White	Surface Mount	0.6 °C/W	125 °	420 lm	410 lm	400 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	140 lm/W	2-Step MacAdam Ellipse
CreeLED, Inc. XPLBWT-00-0000-000BV60E4	4500 K	1414 (3535 Metric)	70	2.82 V	Neutral White	Surface Mount	2.2 °C/W	125 °	500 lm	490 lm	480 lm	0.136 in	0.136 in	2-SMD	1.05 A	0.111 in	3 A	166 lm/W
CreeLED, Inc. XPLBWT-00-0000-000BW20DV	5700 K	1414 (3535 Metric)	70	2.79 V	Cool White	Surface Mount		125 °	520 lm	510 lm	500 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	174 lm/W
CreeLED, Inc. XPLBWT-00-0000-000HV230G	3000 K	1414 (3535 Metric)	80	2.82 V	Warm White	Surface Mount	2.2 °C/W	125 °	420 lm	410 lm	400 lm	0.136 in	0.136 in		1.05 A	0.111 in	3 A	138 lm/W	3-Step MacAdam Ellipse
CreeLED, Inc. XPLBWT-00-0000-000HV40E1	6500 K	1414 (3535 Metric)	80	2.79 V	Cool White	Surface Mount		125 °	460 lm	450 lm	440 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	154 lm/W
CreeLED, Inc. XPLBWT-00-0000-000BV60E7	3000 K	1414 (3535 Metric)	70	2.79 V	Warm White	Surface Mount	2.2 °C/W	125 °	500 lm	490 lm	480 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	167 lm/W
CreeLED, Inc. XPLBWT-00-0000-000HV540G	4000 K	1414 (3535 Metric)	80	2.79 V	Neutral White	Surface Mount		125 °	480 lm	470 lm	460 lm	0.136 in	0.136 in	1414	1.05 A	0.111 in	3 A	160 lm/W	3-Step MacAdam Ellipse
