5103310-1

Active

TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Find alt

Alpha

5103310-1

Active

TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5103310 Series

The 5103310-1 is a 10-way 2-row Pin Header with tin-plated copper alloy contacts. It comes with black glass filled nylon/PBT housing, daisy chain and center dual polarizing bar. The pin contacts transmits signal (data). The header mates with receptacles.

Technical Specifications

Parameters and characteristics for this part

Specification	5103310-1

Connector Type	Header
Contact Finish - Mating	Gold-Palladium, Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.24 in
Contact Length - Post	0.135 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.36 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

5103310 Series

Part	Pitch - Mating	Termination	Row Spacing - Mating	Insulation Color	Features	Fastening Type	Contact Length - Mating	Contact Finish - Mating	Material Flammability Rating	Connector Type	Style	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Current Rating (Per Contact)	Shrouding	Contact Material	Contact Finish - Post	Number of Rows	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Post	Number of Positions	Insulation Height	Contact Shape	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 5103310-1	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	10	0.36 in	Square	100 Ąin
TE Connectivity AMP Connectors 5103310-2	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	14	0.36 in	Square	100 Ąin
TE Connectivity AMP Connectors 5103310-3	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	16	0.36 in	Square	100 Ąin
TE Connectivity AMP Connectors 5103310-7	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	34	0.36 in	Square	100 Ąin
TE Connectivity AMP Connectors 1-5103310-0	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	50	0.36 in	Square	100 Ąin

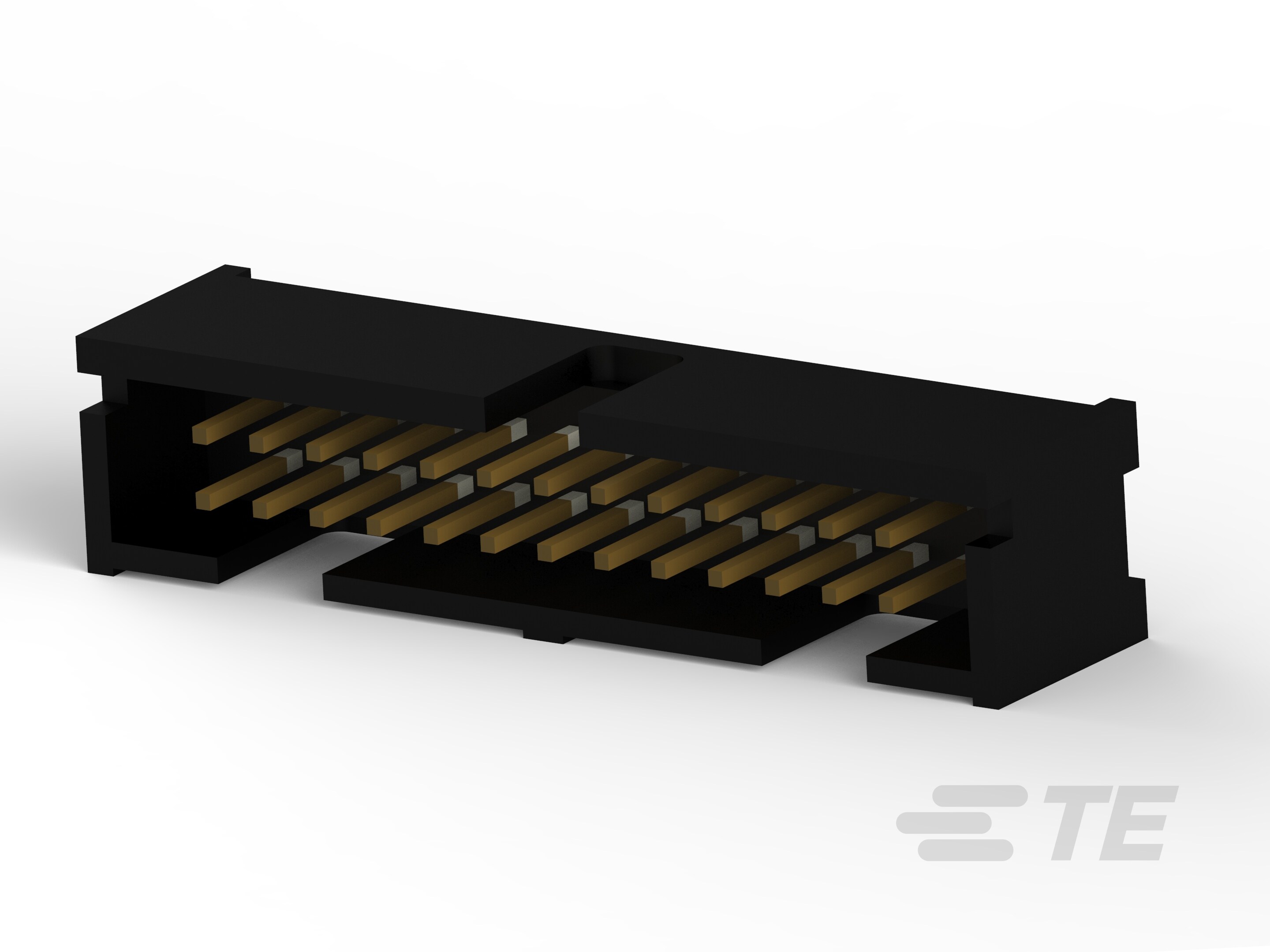

TE Connectivity AMP Connectors 5103310-6	0.1 in	Solder	0.1 in	Black	Keying Slot	Push-Pull	0.24 in	Gold Gold-Palladium	UL94 V-0	Header	Board Cable/Wire	All	Male Pin	15 µin	1 A	Shrouded - 4 Wall	Brass	Tin	2	Right Angle Through Hole	105 °C	-65 °C	0.135 in	26	0.36 in	Square	100 Ąin
