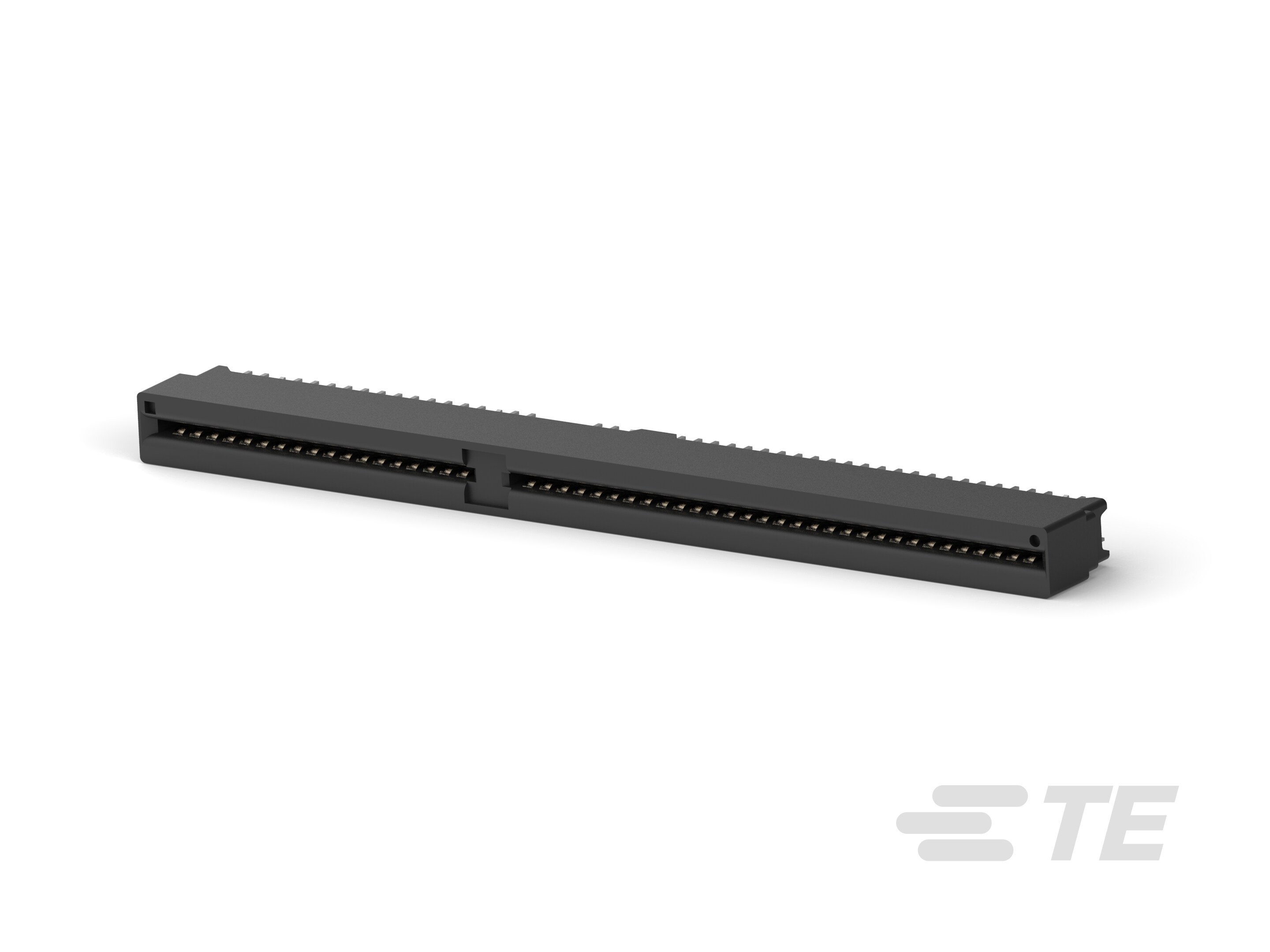

CONN SEC II 49 POS 100C/L-5176139-2

5176139-2

Active
TE Connectivity AMP Connectors

CONN CARDEDGE FMALE 98POS 0.100

Find alt
CONN SEC II 49 POS 100C/L-5176139-2

5176139-2

Active
TE Connectivity AMP Connectors

CONN CARDEDGE FMALE 98POS 0.100

Find alt

Description

General part information

5176139 Series

Board-to-Board Card Edge Power Connector, 98 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 98 Power Positions, 0 Signal Positions

Technical Specifications

Parameters and characteristics for this part

Specification5176139-2
Card Thickness (Max)0.07 in
Card Thickness (Min)0.054 in
Card TypeSpecial 18/31 Dual Combo
ColorBlack
Contact FinishGold
Contact Finish Thickness15 µin
Contact MaterialPhosphor Bronze
GenderFemale
Material - InsulationPolyester, Glass Filled
Mounting TypeThrough Hole
Number of Bay31
Number of Positions98, 18
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-55 °C
Pitch0.1 in
Read OutDual
TerminationSolder
