5650473-5

5650473-5

Active
TE Connectivity AMP Connectors

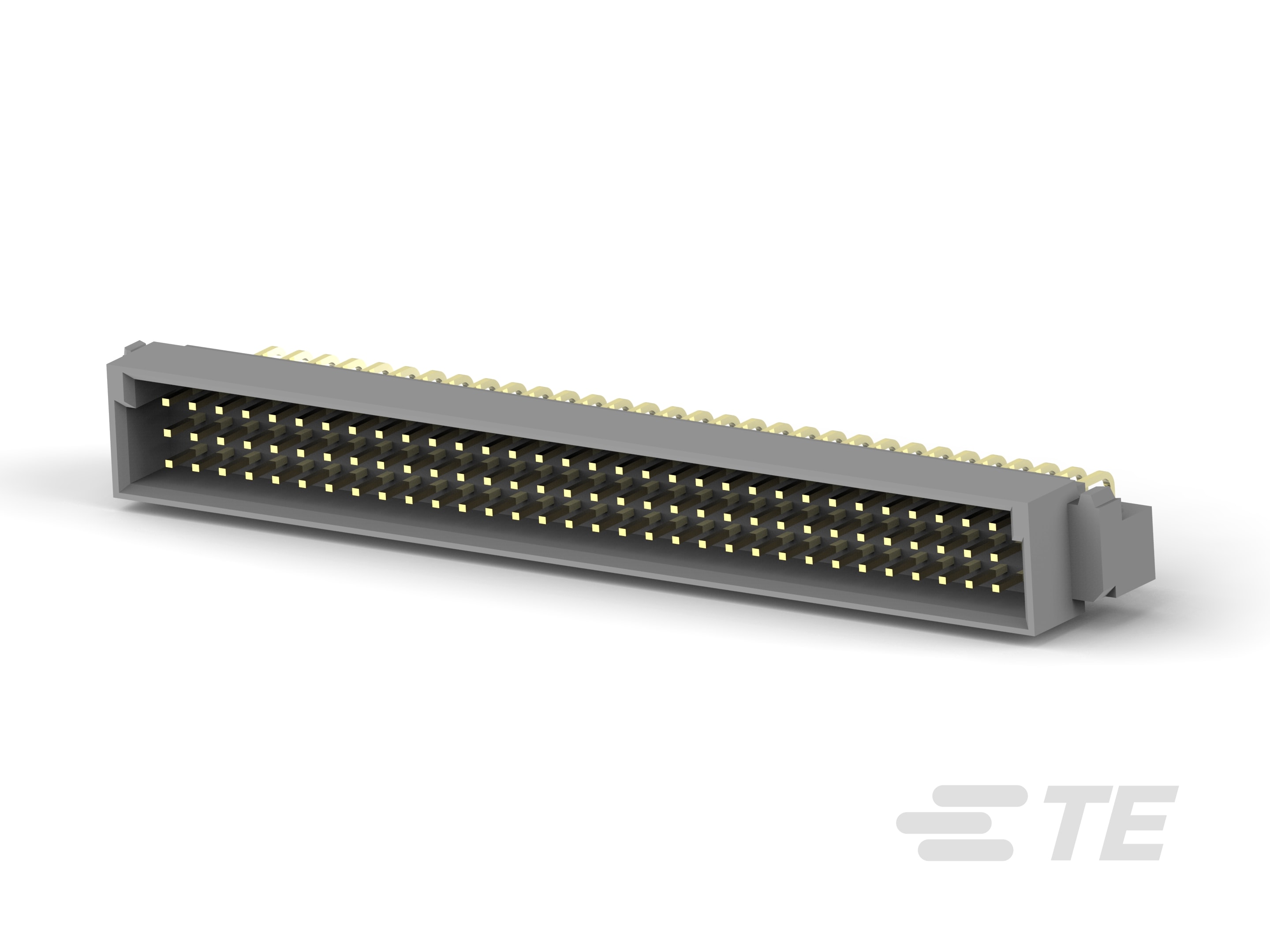

CONN BACKPLANE M 96 POS 2.54MM SOLDER RA THRU-HOLE BOX

Find alt
5650473-5

5650473-5

Active
TE Connectivity AMP Connectors

CONN BACKPLANE M 96 POS 2.54MM SOLDER RA THRU-HOLE BOX

Find alt

Description

General part information

5650473 Series

Plug, Board-to-Board, 96 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 32 Column, Eurocard Connectors

Technical Specifications

Parameters and characteristics for this part

Specification5650473-5
Connector TypeMale Pins, Plug
Contact FinishGold
Level, Class2
Material - InsulationGlass Filled, Polymer Thermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions96
Number of Positions LoadedAll
Number of Rows3
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.1 in
StyleC
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
