RTS6BS10N3P03

Active

McGill Microwave Systems

CIRCULAR CONNECTOR, SIZE 10 IP68/IP69K, ECOMATE AQUARIUS SERIES, STRAIGHT PLUG, 3 CONTACTS

Find alt

Alpha

RTS6BS10N3P03

Active

McGill Microwave Systems

CIRCULAR CONNECTOR, SIZE 10 IP68/IP69K, ECOMATE AQUARIUS SERIES, STRAIGHT PLUG, 3 CONTACTS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RTS6BS10 Series

Amphenol Sine Systems’ ecomate® Aquarius™ Waterproof Connectors provide an IP67/69K waterproof rating (in mated condition), are corrosion-resistant, and feature a thermoplastic UL94 V-0 shell and low-profile housing for Indoor/Outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes and 27 insert arrangements.Additional features include optional In-Line, Jam-Nut, Square-Flanged, PCB, and End Cap configurations.

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS10N3P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Male Pins

RTS6BS10 Series

Part	Orientation	Features	Fastening Type	Number of Positions	Type	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Shielding	Connector Type	Contact Type	Contact Size	Material Flammability Rating	Housing Color	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Includes	Includes Total Count	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Contact Shape	Note	Primary Material	Shell Size - Insert
McGill Microwave Systems RTS6BS10N4PHEC03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	4	For Male Pins	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 S	UL94 V-0	Black	Free Hanging (In-Line)	4 mm	10 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RTS6BS10N3P03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	3	For Male Pins	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 S	UL94 V-0	Black	Free Hanging (In-Line)	3 mm	10 mm			125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RTS6BS10N3S03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	3	For Female Sockets	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 S	UL94 V-0	Black	Free Hanging (In-Line)	3 mm	10 mm			125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included

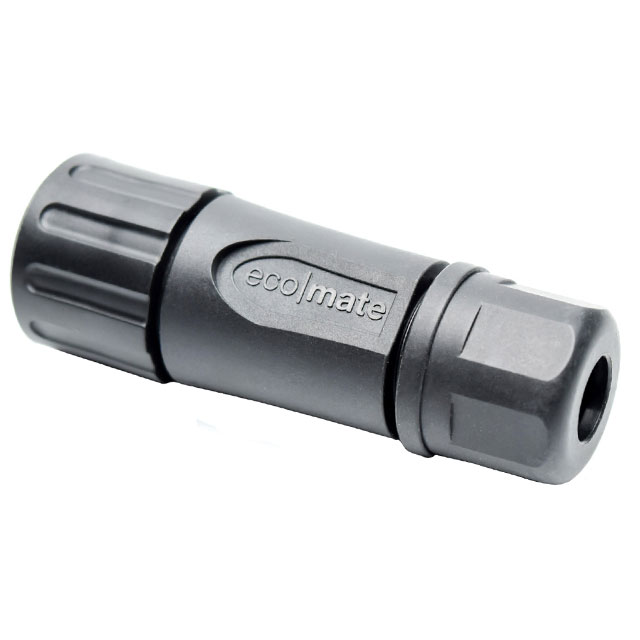

McGill Microwave Systems RTS6BS10N6S03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	6	For Female Sockets	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	20	UL94 V-0	Black	Free Hanging (In-Line)	6 mm	10 mm			125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RTS6BS10N3W3S03	N (Normal)	Backshell	Bayonet Lock	6	For Female Sockets	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 20	UL94 V-0	Black	Free Hanging (In-Line)					125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included	Plastic	10-3W3
McGill Microwave Systems RTS6BS10N3W3P03	N (Normal)	Backshell	Bayonet Lock	6	For Male Pins	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 20	UL94 V-0	Black	Free Hanging (In-Line)					125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included	Plastic	10-3W3

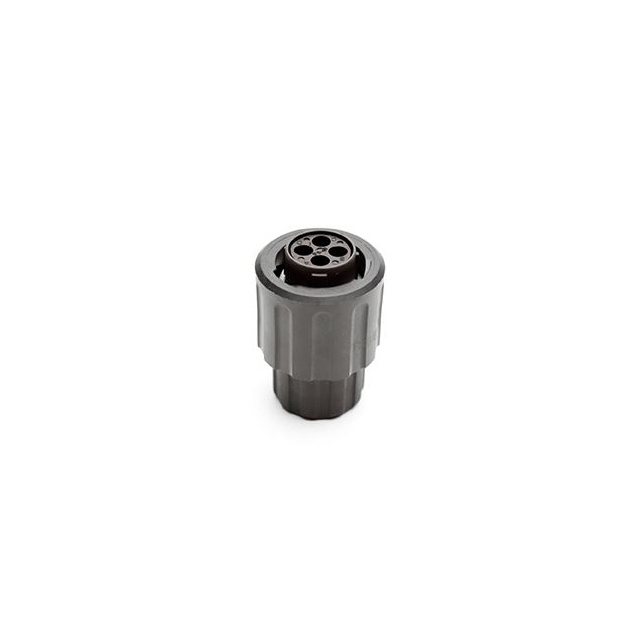

McGill Microwave Systems RTS6BS10N4SHEC03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	4	For Female Sockets	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	16 S	UL94 V-0	Black	Free Hanging (In-Line)	4 mm	10 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RTS6BS10N6PHEC03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	6	For Male Pins	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	20	UL94 V-0	Black	Free Hanging (In-Line)	6 mm	10 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included
McGill Microwave Systems RTS6BS10N6SHEC03	N (Normal)	Backshell Coupling Nut	Bayonet Lock	6	For Female Sockets	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Plug Housing	Crimp	20	UL94 V-0	Black	Free Hanging (In-Line)	6 mm	10 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic	Circular	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Enhanced Product Overview EN

Drawing EN
