Specification	RTY360LVNBX

Actuator Type	Flatted Shaft
For Measuring	Rotary Position
Linearity Tolerance	1 %
Mounting Type	Chassis Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output	Analog Voltage
Output Signal	Counterclockwise Increase
Package / Case	Box with Connector
Rotation Angle - Electrical, Mechanical (Mode)	Continuous
Rotation Angle - Electrical, Mechanical (Nominal)	360 °
Rotation Angle - Electrical, Mechanical (Tolerance)	180 °
Technology	Hall Effect
Termination Style	Connector
Voltage - Supply	5 VDC

RTY/RTP Series

Part	Output	Actuator Type	Mounting Type	Package / Case	For Measuring	Technology	Linearity Tolerance	Output Signal	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Tolerance)	Rotation Angle - Electrical, Mechanical (Nominal)	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Resistance	Voltage - Supply
Honeywell Sensing and Productivity Solutions RTY270HVNAX	Analog Voltage	Flatted Shaft	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase	Continuous	135 °	270 °	125 °C	-40 °C	Connector	10 VDC	30 VDC
Honeywell Sensing and Productivity Solutions RTP180HVNAY	Analog Voltage	External Magnet Included	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase		90 °	180 °	125 °C	-40 °C	Connector	10 VDC	30 VDC	10 kOhm
Honeywell Sensing and Productivity Solutions RTP120HVNAY
Honeywell Sensing and Productivity Solutions RTY050HVNAX	Analog Voltage	Flatted Shaft	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase	Continuous	25 °	50 °	125 °C	-40 °C	Connector	10 VDC	30 VDC
Honeywell Sensing and Productivity Solutions RTP350HVNAA	Analog Voltage	External Magnet Included	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase		175 °	350 °	125 °C	-40 °C	Connector	10 VDC	30 VDC
Honeywell Sensing and Productivity Solutions RTY090HVNAX	Analog Voltage	Flatted Shaft	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase	Continuous	45 °	90 °	125 °C	-40 °C	Connector	10 VDC	30 VDC

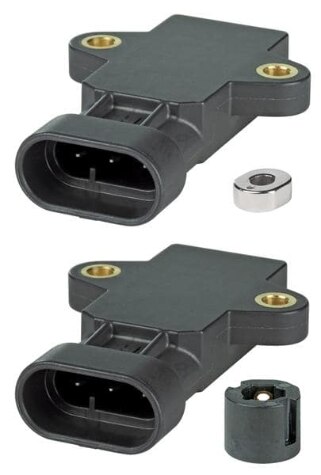

Honeywell Sensing and Productivity Solutions RTP060HVNAX
Honeywell Sensing and Productivity Solutions RTY120LVEAA	Analog Voltage	Flatted Shaft	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase		60 °	120 °	125 °C	-40 °C	Connector	4.5 V	5.5 V	10 kOhm
Honeywell Sensing and Productivity Solutions RTP120HVNAA	Analog Voltage	External Magnet Included	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Clockwise Increase		60 °	120 °	125 °C	-40 °C	Connector	10 VDC	30 VDC
Honeywell Sensing and Productivity Solutions RTY360LVNBX	Analog Voltage	Flatted Shaft	Chassis Mount	Box with Connector	Rotary Position	Hall Effect	1 %	Counterclockwise Increase	Continuous	180 °	360 °	125 °C	-40 °C	Connector				5 VDC
