2304185-8

Obsolete

TE Connectivity AMP Connectors

EP2.5 SHROUDED HDR ASSY 8P VERT W/O BOSS

2304185-8

Obsolete

TE Connectivity AMP Connectors

EP2.5 SHROUDED HDR ASSY 8P VERT W/O BOSS

Description Specifications Series Pricing CAD Documents

Description

General part information

2304185 Series

PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Signal, Natural

Technical Specifications

Parameters and characteristics for this part

Specification	2304185-8

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.142 in
Contact Length - Post	0.134 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	4.2 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.346 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	250 V

2304185 Series

Part	Shrouding	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Pitch - Mating	Number of Rows	Insulation Height	Contact Shape	Material Flammability Rating	Style	Number of Positions Loaded	Mounting Type	Insulation Color	Contact Finish - Post	Contact Length - Post	Termination	Number of Positions	Contact Type	Fastening Type	Contact Material	Contact Finish - Mating	Current Rating	Insulation Material	Contact Length - Mating
TE Connectivity AMP Connectors 2304185-4	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	4	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 2-2304185-2	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Blue	Tin	0.134 in	Kinked Pin Solder	2	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 5-2304185-2	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Green	Tin	0.134 in	Kinked Pin Solder	2	Male Pin	Friction Lock	Brass	Tin		Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 1-2304185-2	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Red	Tin	0.134 in	Kinked Pin Solder	2	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 2304185-8	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	8	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 2304185-7	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	7	Male Pin	Friction Lock	Brass	Tin		Polybutylene Terephthalate (PBT)

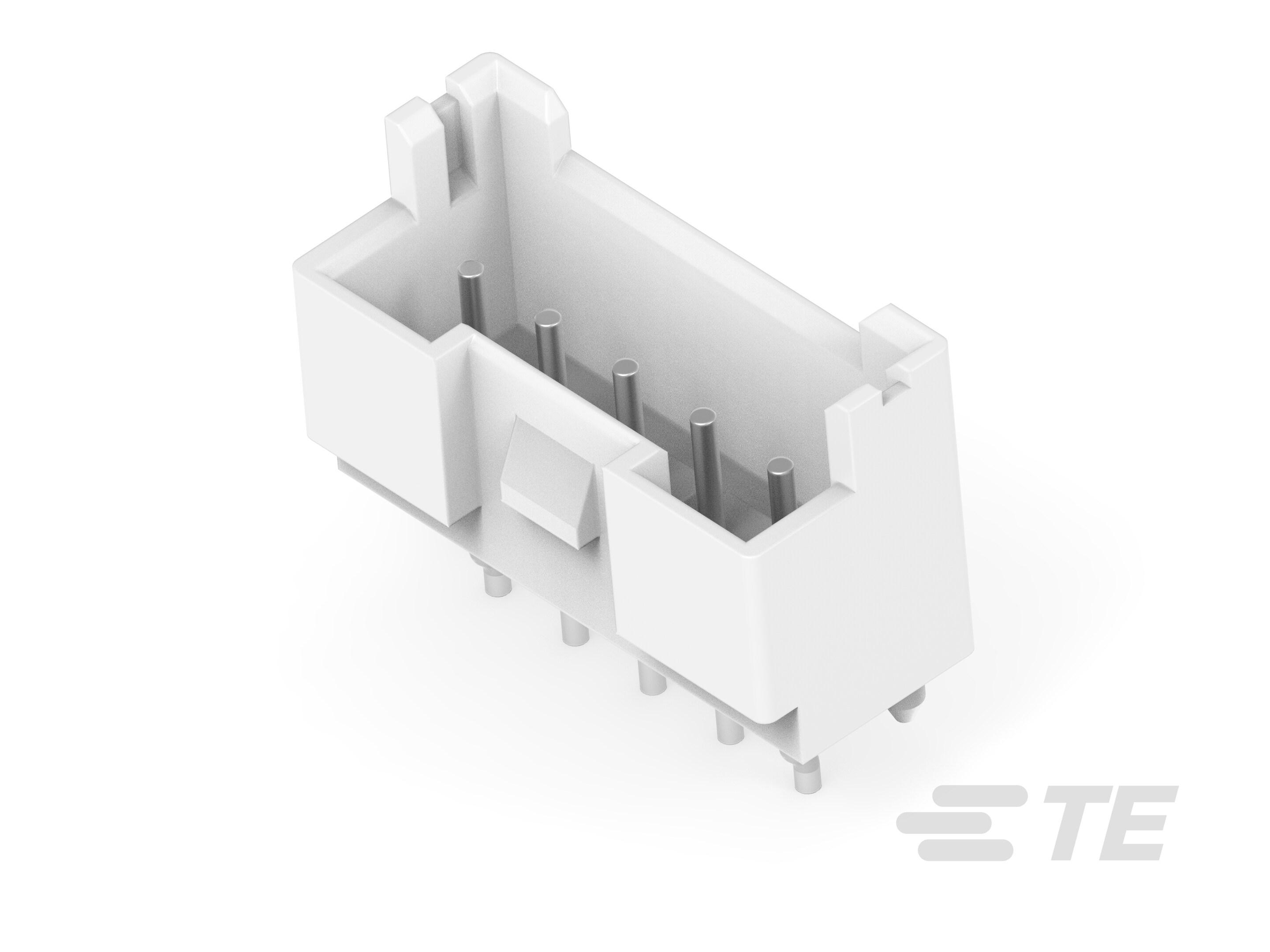

TE Connectivity AMP Connectors 2304185-5	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	5	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 1-2304185-0	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	10	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 2304185-2	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	2	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
TE Connectivity AMP Connectors 2304185-3	Shrouded - 4 Wall	Header	-55 °C	105 °C	250 V	0.098 in	1	0.346 in	Circular	UL94 V-0	Board Cable/Wire	All	Through Hole	Natural	Tin	0.134 in	Kinked Pin Solder	3	Male Pin	Friction Lock	Brass	Tin	4.2 A	Polybutylene Terephthalate (PBT)	0.142 in
