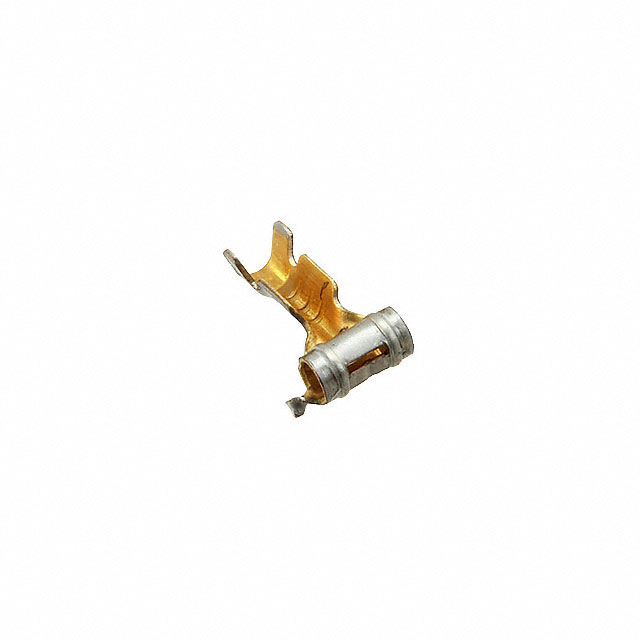

61119-1

61119-1

Active
TE Connectivity AMP Connectors

PIN RECPT .058 R/A AU/BECU ROHS COMPLIANT: YES

Find alt
61119-1

61119-1

Active
TE Connectivity AMP Connectors

PIN RECPT .058 R/A AU/BECU ROHS COMPLIANT: YES

Find alt

Description

General part information

61119 Series

Receptacle, 6.7 mm [.263 in] PCB Hole, 24 – 20 AWG, .2 – .6 mm² Wire, Through Hole - Solder, Gold Plating, Reel, PCB Terminals

Technical Specifications

Parameters and characteristics for this part

Specification61119-1
Contact FinishGold
Contact MaterialBeryllium Copper
Diameter - Barrel0.058 in
InsulationNon-Insulated
Insulation Diameter (Max)0.07 in
Insulation Diameter (Min)0.045 in
Length - Barrel0.168 in
Terminal TypeFemale, Flag, Receptacle (Socket)
TerminationCrimp
Wire Gauge (AWG) (Max)24 AWG
Wire Gauge (AWG) (Min)19.5 AWG
