Specification	321879

Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	2.178 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.4375 in
Stud/Tab Size	7 Stud, 16 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.102 in
Width - Outer Edges	1.087 in
Wire Gauge	4/0 AWG

3218 Series

Part	Length - Overall	Stud/Tab Size	Stud/Tab Size	Insulation	Width - Outer Edges	Mounting Type	Terminal Type	Features	Termination	Wire Gauge	Thickness	Contact Material	Contact Finish	Insulation Diameter (Min)	Insulation Diameter (Max)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Stud/Tab Size (Type)	Type	Shielding
TE Connectivity AMP Connectors 321879	2.178 in	0.4375 in	16 Stud 7 Stud	Non-Insulated	1.087 in	Free Hanging (In-Line)	Circular	Brazed Seam	Crimp	4/0 AWG	0.102 in	Copper	Tin

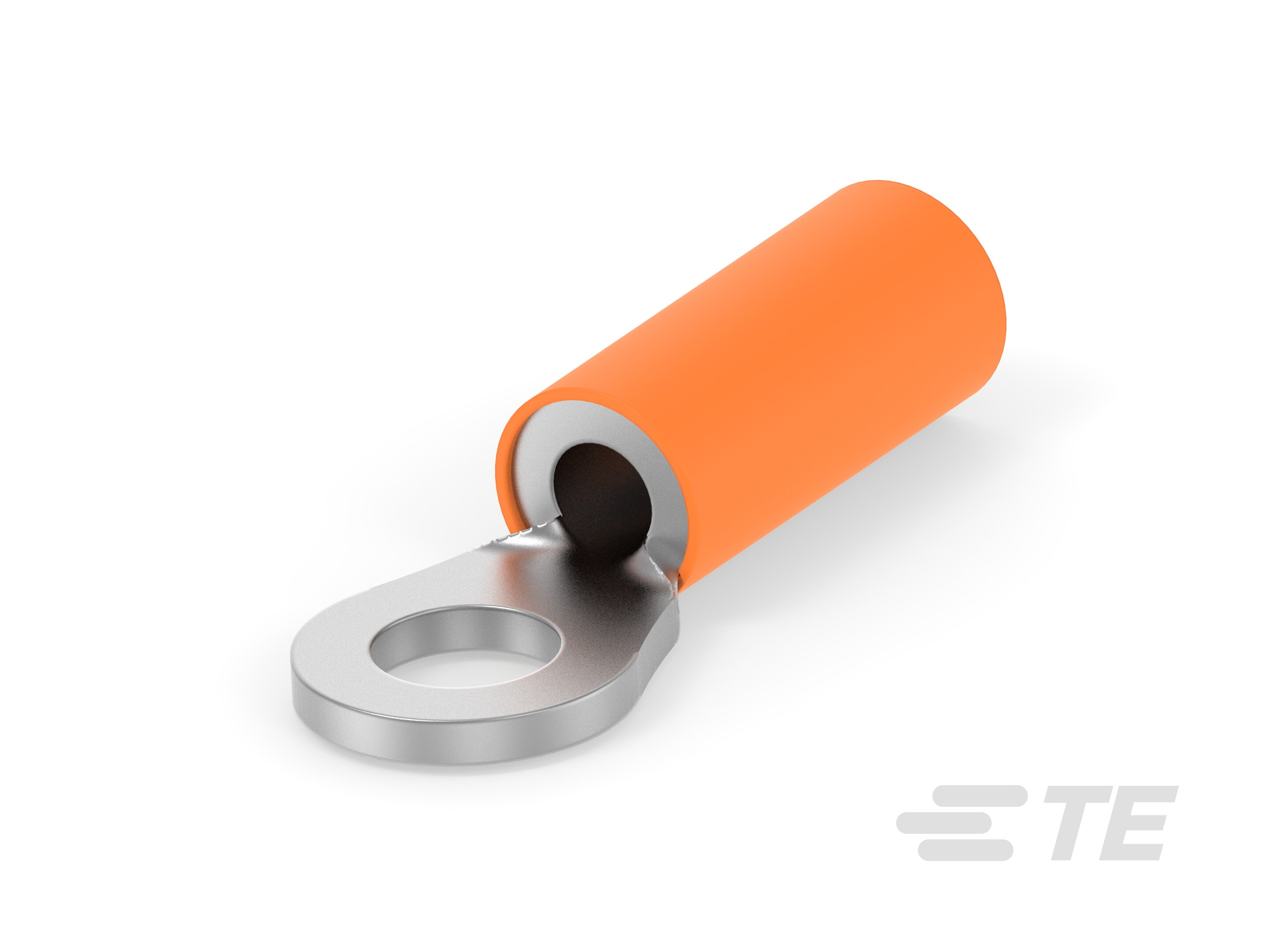

TE Connectivity AMP Connectors 321887	0.624 in	4 Stud		Non-Insulated	0.218 in	Free Hanging (In-Line)	Circular	High Temperature Serrated Termination	Crimp		0.031 in	Nickel		0.105 in	0.14 in	16 AWG	22 AWG	Orange

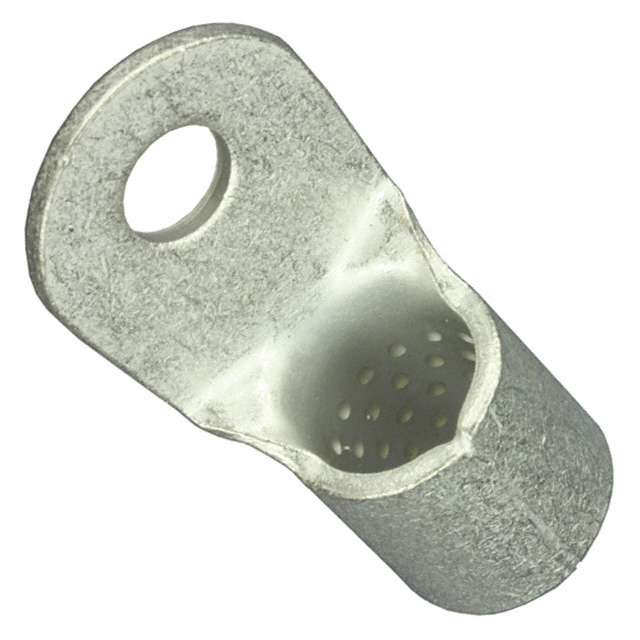

TE Connectivity AMP Connectors 321870	1.93 in	0.3125 in	16 Stud 5 Stud	Non-Insulated	0.926 in	Free Hanging (In-Line)	Circular	Brazed Seam Serrated Termination	Crimp	2/0 AWG	0.08 in	Copper	Tin						Stud

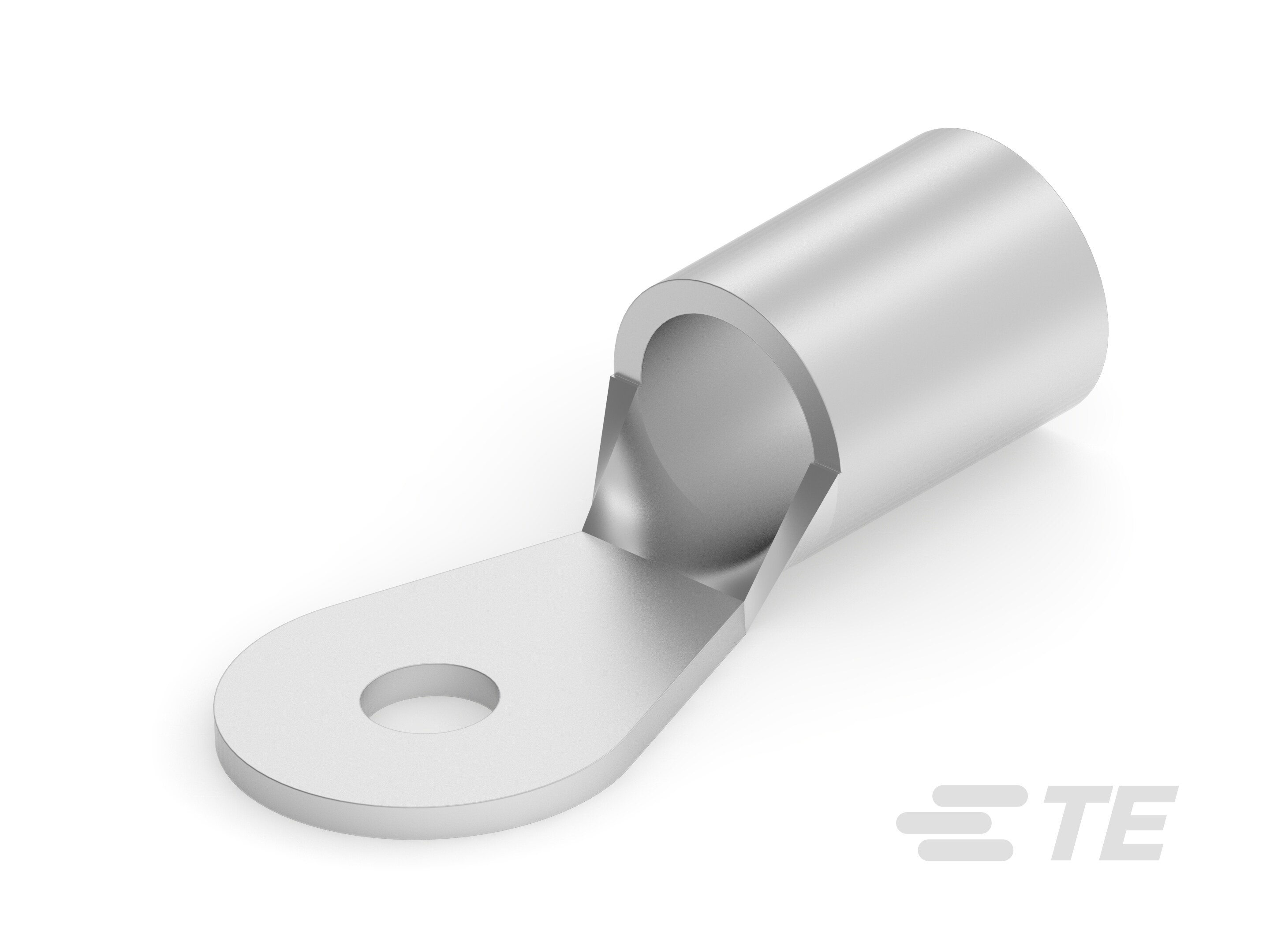

TE Connectivity AMP Connectors 321866	1.925 in	0.25 Stud		Non-Insulated	0.807 in	Free Hanging (In-Line)	Circular	Brazed Seam	Crimp	1/0 AWG	0.07 in	Copper	Tin

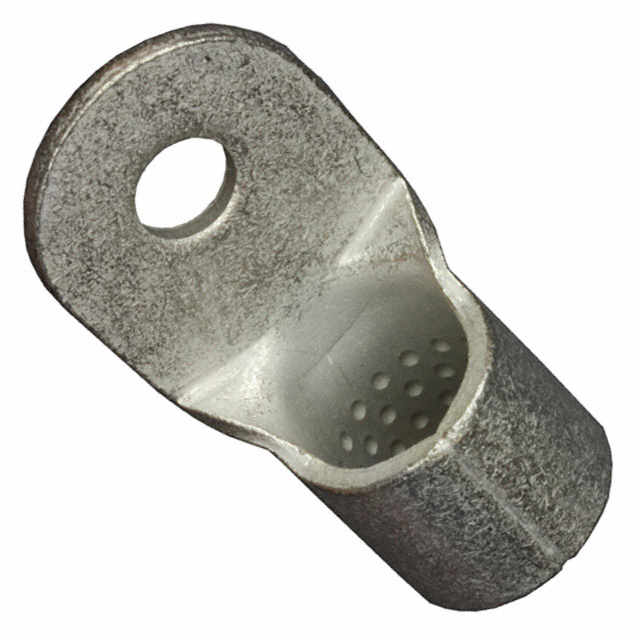

TE Connectivity AMP Connectors 321874	2.112 in	0.3125 in	16 Stud 5 Stud	Non-Insulated	1.02 in	Free Hanging (In-Line)	Circular	Brazed Seam Serrated Termination	Crimp	3/0 AWG		Copper	Tin						Stud
TE Connectivity AMP Connectors 321873	1.93 in	0.5 Stud		Non-Insulated	0.926 in	Free Hanging (In-Line)	Circular	Brazed Seam Serrated Termination	Crimp	2/0 AWG	0.08 in	Copper	Tin
TE Connectivity AMP Connectors 321896	0.621 in	10 Stud		Non-Insulated	0.312 in	Free Hanging (In-Line)	Circular	Brazed Seam High Temperature Serrated Termination	Crimp		0.03 in	Nickel				16 AWG	22 AWG	Orange
TE Connectivity AMP Connectors 321895	0.621 in	8 Stud		Non-Insulated	0.312 in	Free Hanging (In-Line)	Circular	Brazed Seam High Temperature Serrated Termination	Crimp		0.03 in	Nickel				16 AWG	22 AWG	Orange
TE Connectivity AMP Connectors 3218-01-340010-CS2324																				Backshell Heat Shrink Adapter	Shielded
TE Connectivity AMP Connectors 321898	0.796 in	10 Stud		Non-Insulated	0.312 in	Free Hanging (In-Line)	Circular	High Temperature Serrated Termination	Crimp		0.031 in	Nickel		0.105 in	0.14 in	16 AWG	22 AWG	Orange
