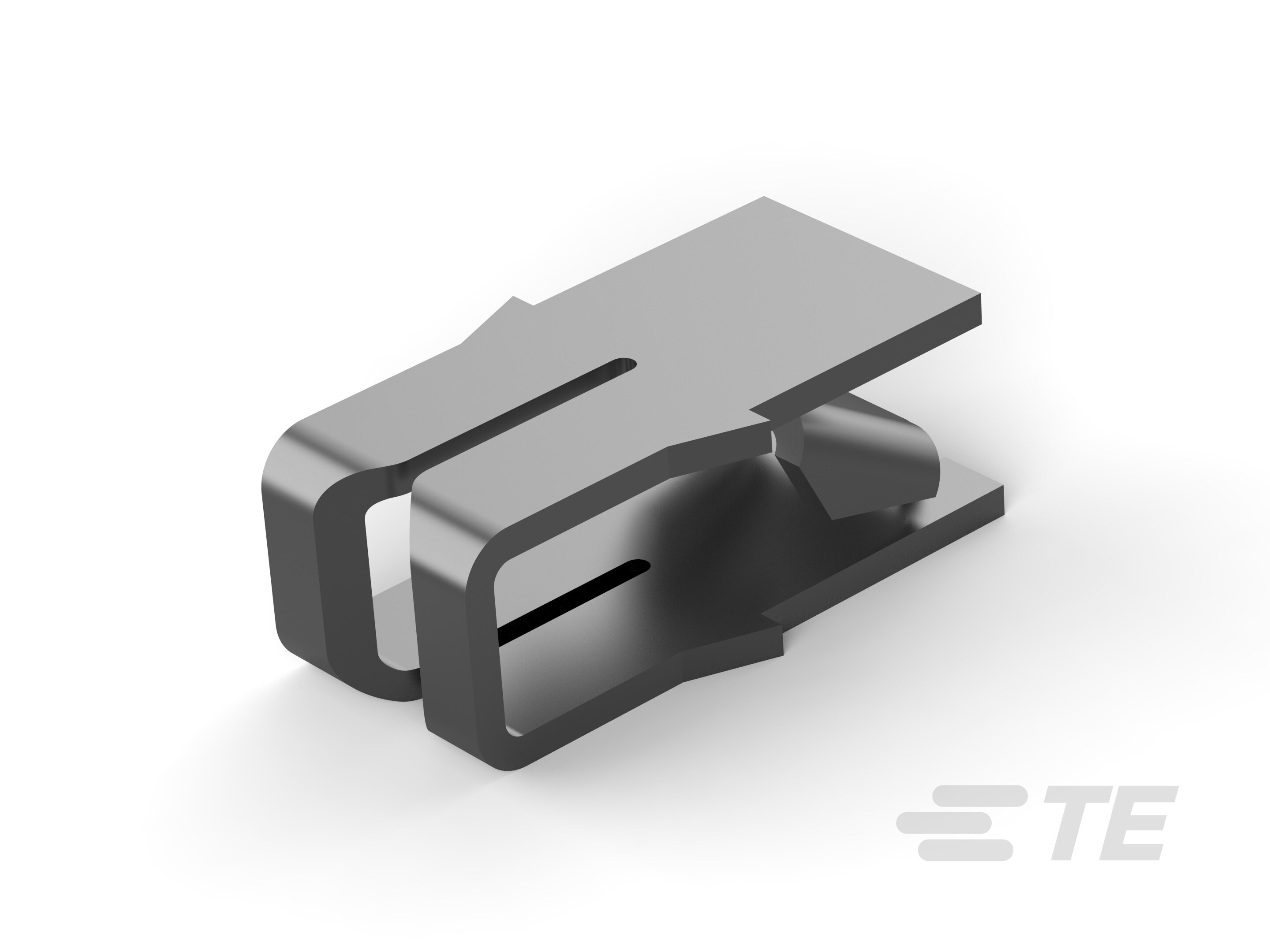

63658-5
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 22-25AWG IDC
63658-5
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 22-25AWG IDC
Description
General part information
63658 Series
Poke-In, .57 – .72 mm Aluminum Wire, 20 – 18 AWG Lead Wire, .5 – .9 mm² Lead Wire, .45 – .64 mm Magnet Wire, MAG-MATE, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 63658-5 |
|---|---|
| Features | Locking |
| Size | 2 |
| Style | 300 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 25 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
