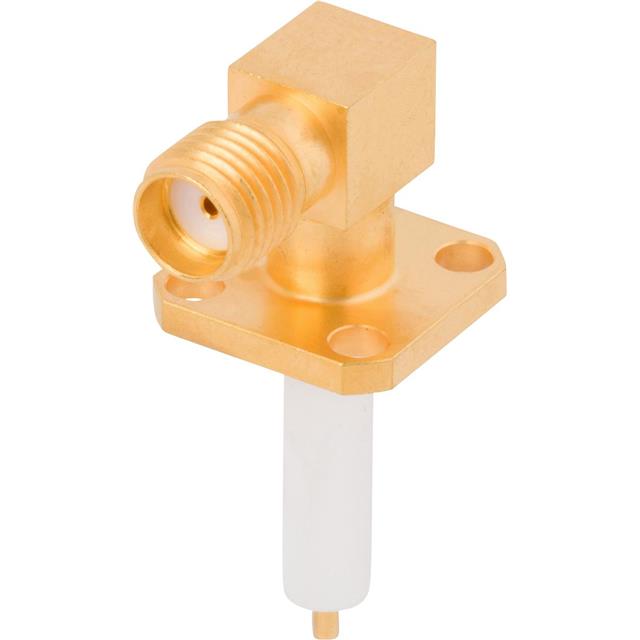

Specification	2960-6025

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Recepture, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Features	Extended Insulation
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Number of Ports	1
Shield Termination	Solder

2960-60 Series

Part	Body Material	Mating Cycles	Dielectric Material	Center Contact Plating	Body Finish	Mounting Type	Impedance	Shield Termination	Center Contact Material	Housing Color	Connector Type	Fastening Type	Connector Style	Frequency - Max	Mounting Feature	Number of Ports	Features	Contact Termination
McGill Microwave Systems 2960-6025	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Gold	Panel Mount Right Angle	50 Ohm	Solder	Beryllium Copper	Gold	Female Socket Recepture	Threaded	SMA	12.4 GHz	Flange	1	Extended Insulation	Solder
