82-6672
ActiveMcGill Microwave Systems
CONN TYPE N 0HZ TO 18GHZ 50OHM CRIMP/SOLDER ST CABLE MOUNT F SILVER
82-6672
ActiveMcGill Microwave Systems
CONN TYPE N 0HZ TO 18GHZ 50OHM CRIMP/SOLDER ST CABLE MOUNT F SILVER
Description
General part information
82-667 Series

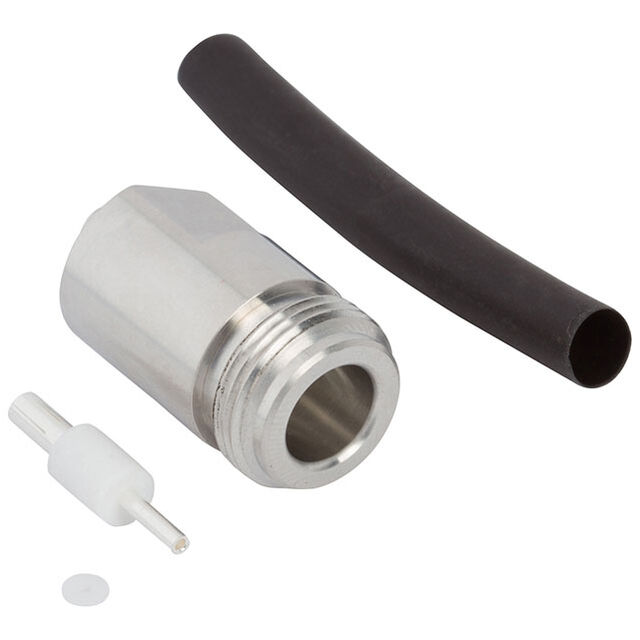

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 82-6672 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-402 |
| Cable Group Diameter (Conformable) | 0.141 in |
| Cable Group Diameter (Semi Rigid) | 0.141 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Includes | Contact, Connector, Heat Shrink, Insulator |
| Includes Total Count | 4 pcs |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
