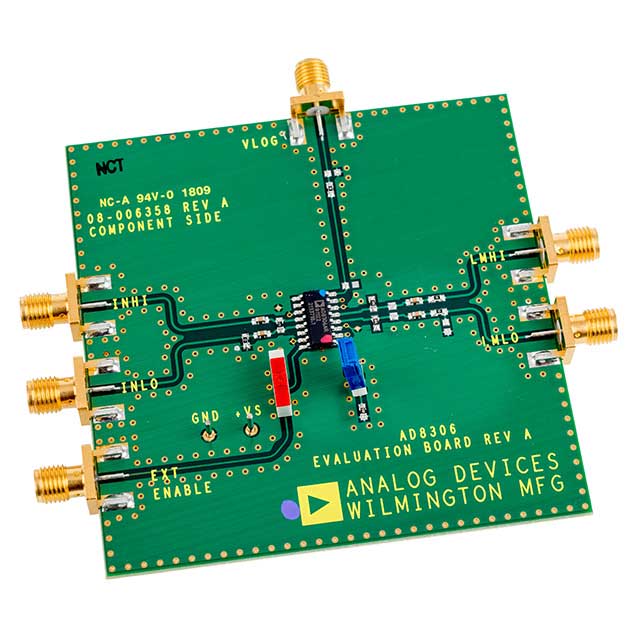

Specification	AD8306-EVALZ

-3db Bandwidth	850 MHz
Amplifier Type	Limiting
Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Supply (Main IC)	0.016 mA
Output Type	Differential
Supplied Contents	Board(s)
Supply Configuration	Single, Dual
Utilized IC / Part	AD8306
Voltage - Supply (Single) Maximum	6.5 V
Voltage - Supply (Single) Minimum	2.7 V

AD8306 Series

Part	Current - Supply (Main IC)	-3db Bandwidth	Supplied Contents	Board Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Output Type	Contents	Amplifier Type	Utilized IC / Part	Supply Configuration	Voltage - Supply (Single) Maximum	Voltage - Supply (Single) Minimum	Type	Package Width	Package Name	Package Length	Applications	Mounting Type
Analog Devices Inc./Maxim Integrated AD8306-EVALZ	0.016 mA	850 MHz	Board(s)	Fully Populated	1	Single	1	Differential	Board	Limiting	AD8306	Dual Single	6.5 V	2.7 V
Analog Devices Inc./Maxim Integrated AD8306ARZ-RL7															Limiting-Logarithmic Amplifier	3.9 mm	16-SO 16-SOIC	0.154 in	Receiver Signal Strength Indication (RSSI)	Surface Mount
