Specification	97-3101A-24-27S

Applications	Automotive, Industrial
Backshell Material	Aluminum Alloy
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Backshell
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Olive Drab Chromate over Cadmium
Primary Material	Metal
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	27
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Termination	Solder Cup

97-3101A24 Series

Part	Features	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Orientation	Fastening Type	Backshell Material	Plating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Color	Applications	Mounting Type	Primary Material	Shielding	Termination	Number of Positions	Connector Type	Insert Material	Shell Material	Shell Finish	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)

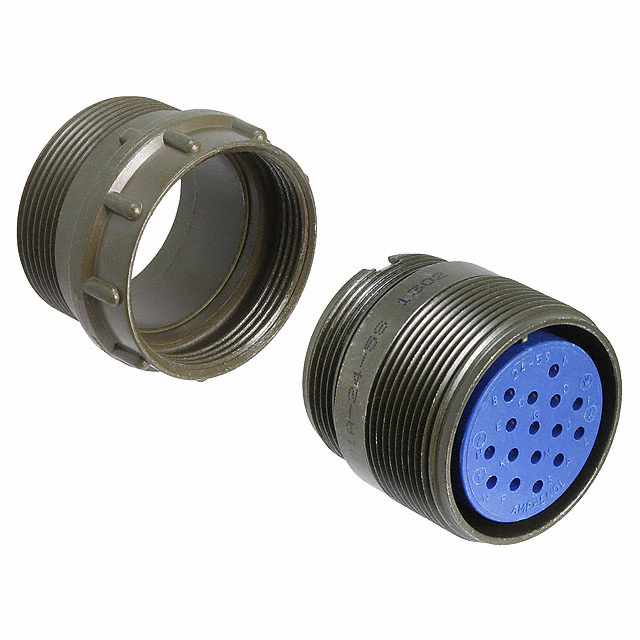

Amphenol Aerospace Operations 97-3101A-24-5S	Backshell	Copper Alloy	24 mm	5 mm	N (Normal)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	Silver	Olive Drab	Automotive Industrial	Free Hanging (In-Line)	Metal	Unshielded	Solder Cup	16	Female Sockets Receptacle	DAP Diallyl Phthalate	Aluminum Alloy	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations 97-3101A-24-22S	Backshell	Copper Alloy			N (Normal)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	Silver	Olive Drab	Automotive Industrial	Free Hanging (In-Line)	Metal	Unshielded	Solder Cup	4	Female Sockets Receptacle	DAP Diallyl Phthalate	Aluminum Alloy	Cadmium Olive Drab Chromate	24	22
Amphenol Aerospace Operations 97-3101A-24-27S	Backshell	Copper Alloy			N (Normal)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	Silver	Olive Drab	Automotive Industrial	Free Hanging (In-Line)	Metal	Unshielded	Solder Cup	7	Female Sockets Receptacle	DAP Diallyl Phthalate	Aluminum Alloy	Cadmium Olive Drab Chromate	24	27
Amphenol Aerospace Operations 97-3101A-24-7P	Backshell	Copper Alloy	24 mm	7 mm	N (Normal)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	Silver	Olive Drab	Automotive Industrial	Free Hanging (In-Line)	Metal	Unshielded	Solder Cup	16	Male Pins Receptacle	DAP Diallyl Phthalate	Aluminum Alloy	Cadmium Olive Drab Chromate
