Specification	2420266-5

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Number of Rows	1
Pitch	0.157 in

2420266 Series

Part	Note	Connector Type	Insulation Material	Pitch	Number of Rows	Fastening Type	Contact Type	Color	Row Spacing	Number of Positions	Mounting Type	Contact Termination

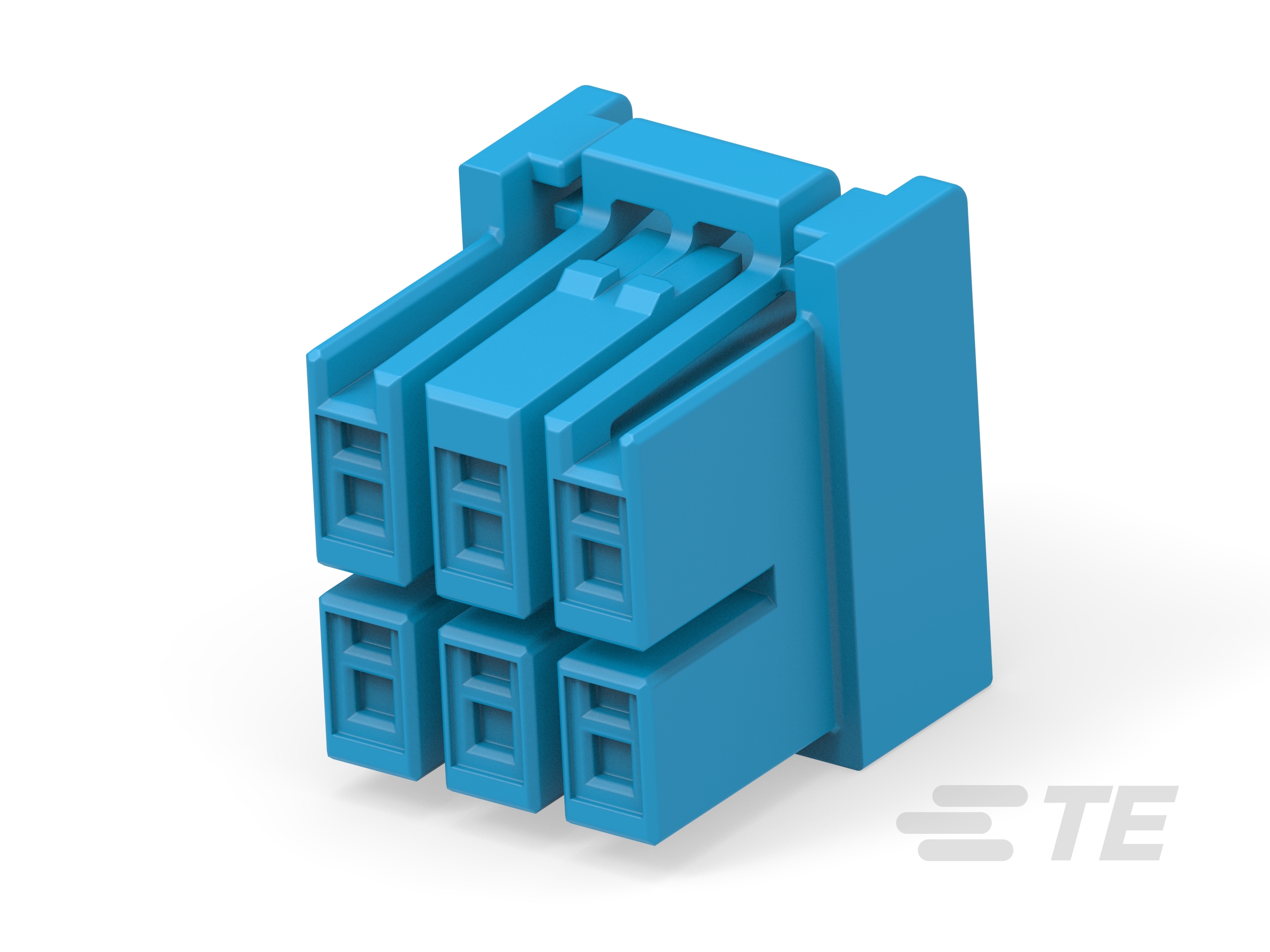

TE Connectivity AMP Connectors 2420266-6	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	2	Latch Holder	Female Socket	Blue	0.234 in	6	Free Hanging (In-Line)	Crimp

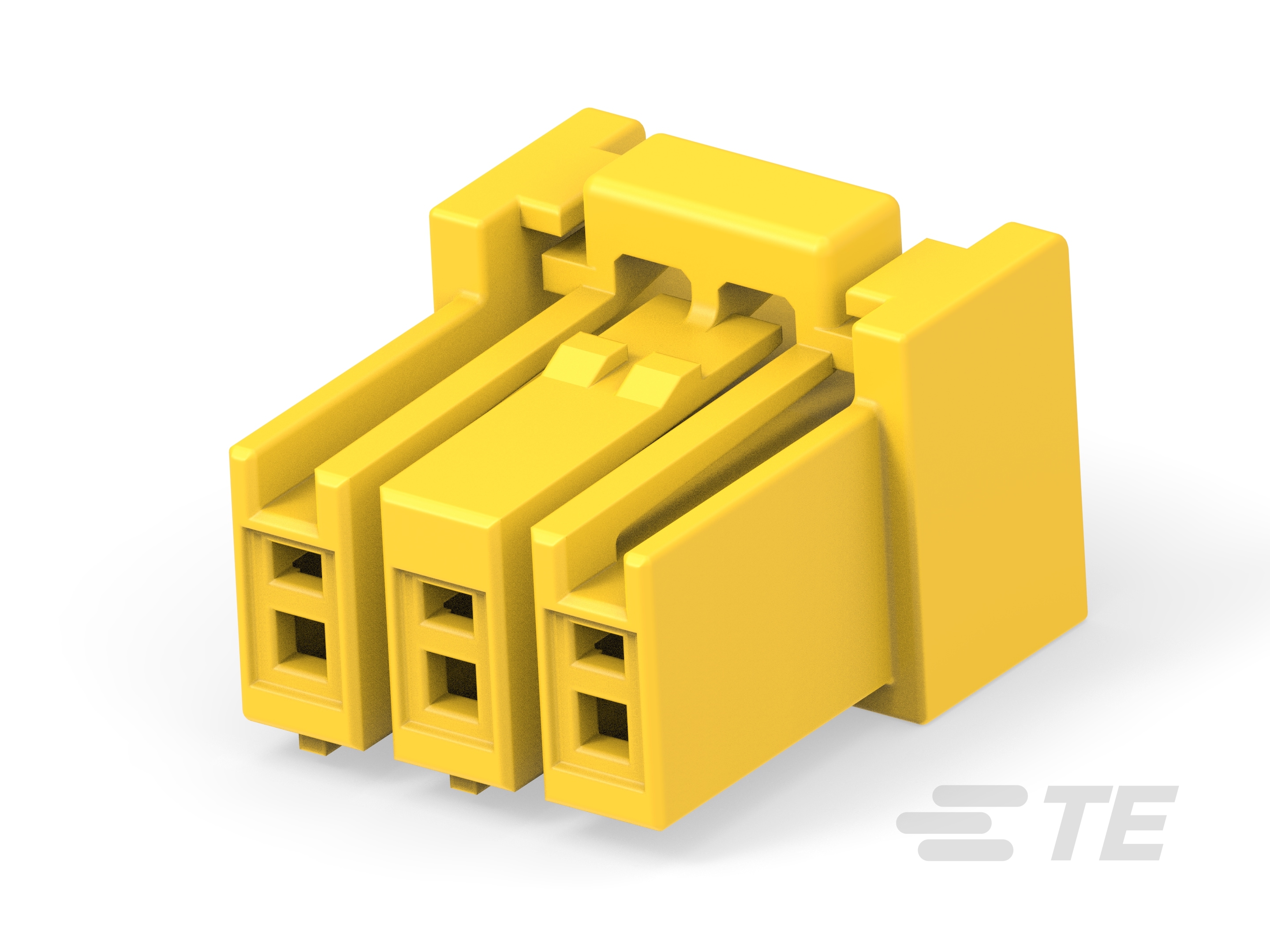

TE Connectivity AMP Connectors 2-2420266-3	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	1	Latch Holder	Female Socket	Yellow		3	Free Hanging (In-Line)	Crimp

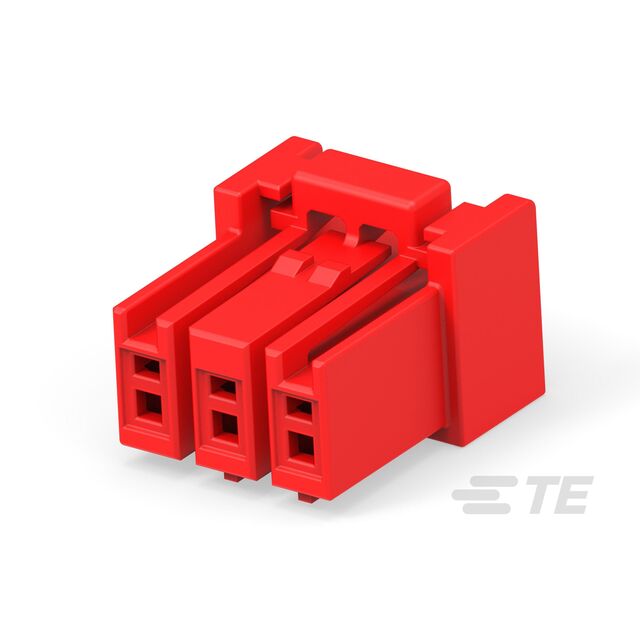

TE Connectivity AMP Connectors 3-2420266-3	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	1	Latch Holder	Female Socket	Red		3	Free Hanging (In-Line)	Crimp

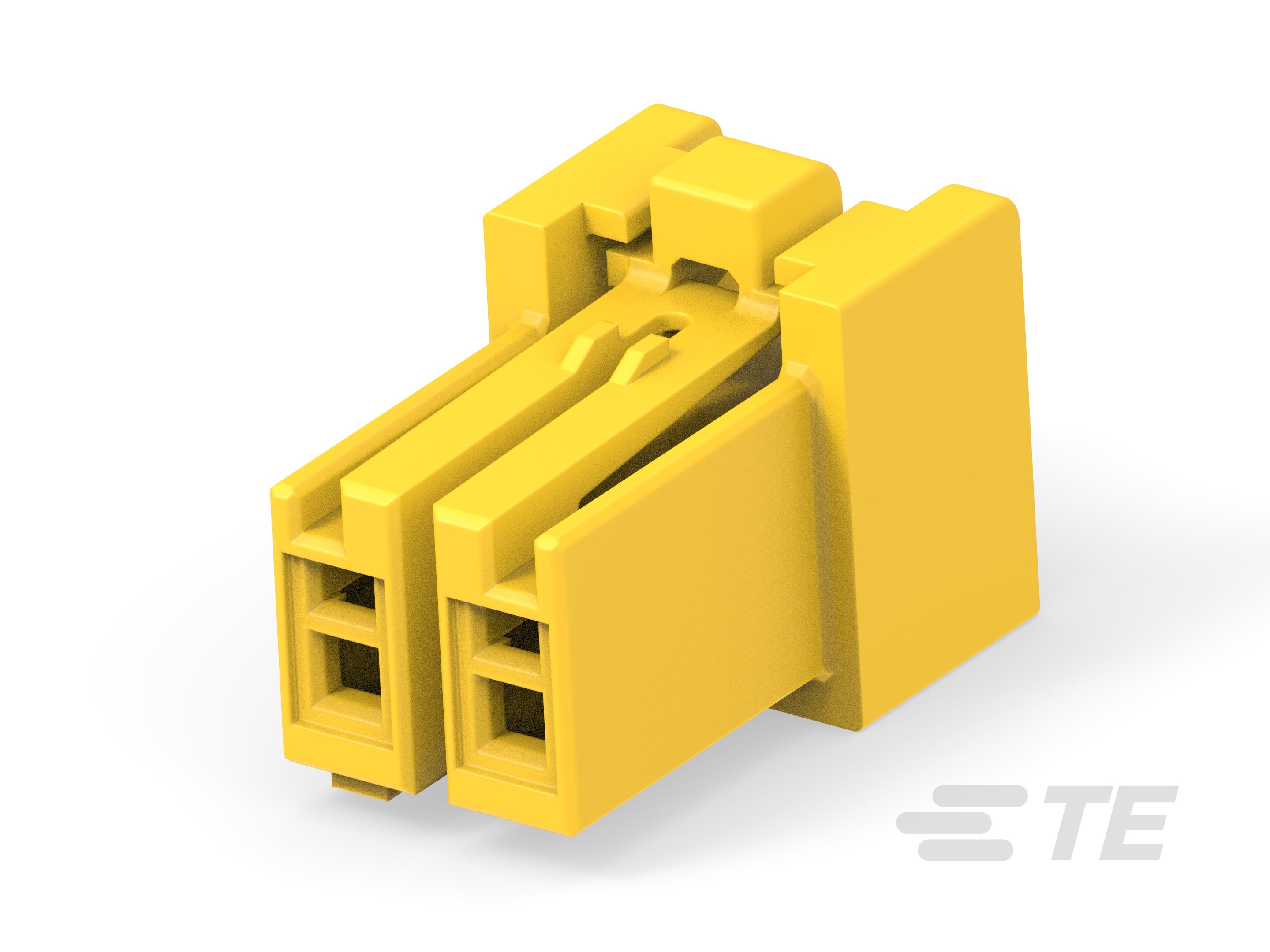

TE Connectivity AMP Connectors 2-2420266-2	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	1	Latch Holder	Female Socket	Yellow		2	Free Hanging (In-Line)	Crimp
TE Connectivity AMP Connectors 2420266-8	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	2	Latch Holder	Female Socket	Blue	0.234 in	8	Free Hanging (In-Line)	Crimp

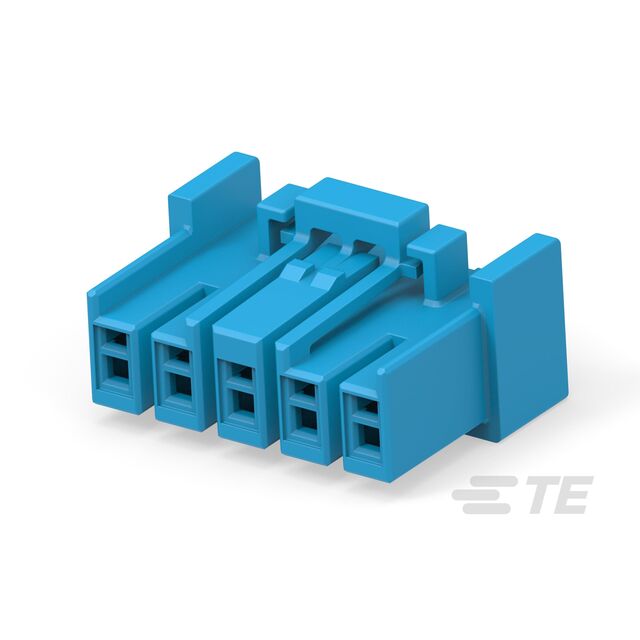

TE Connectivity AMP Connectors 2420266-5	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT)	0.157 in	1	Latch Holder	Female Socket	Blue		5	Free Hanging (In-Line)	Crimp
