Specification	1521-60188

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Plug Diameter	2.92 mm
Connector Type	Jack, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Fastening Type	Threaded
Frequency - Max	40 Gbps
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Screw

1521-60 Series

Part	Mating Cycles	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Frequency - Max	Contact Termination	Mounting Feature	Center Contact Material	Fastening Type	Mounting Type	Impedance	Number of Ports	Connector Type	Connector Plug Diameter	Housing Color	Shield Termination	Cable Group Diameter (Semi Rigid)	Cable Group	Cable Group Size
McGill Microwave Systems 1521-60194	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Compression	Flange	Beryllium Copper	Threaded	Surface Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Screw

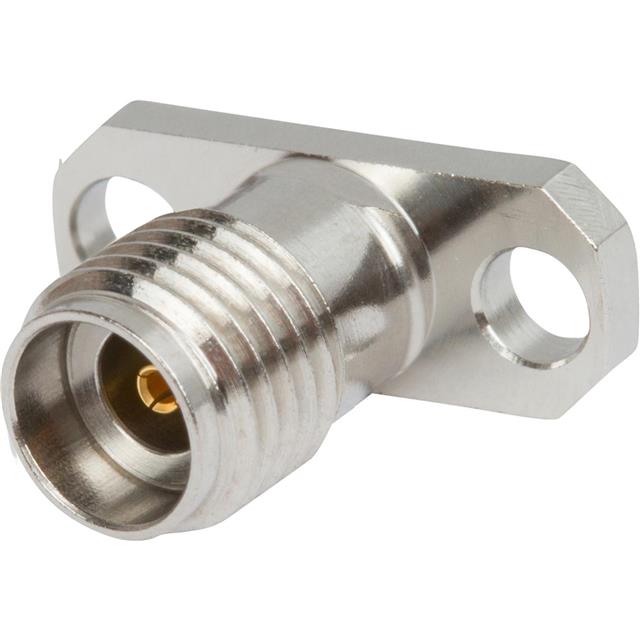

McGill Microwave Systems 1521-60187	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Compression	Flange	Beryllium Copper	Threaded	Surface Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Screw
McGill Microwave Systems 1521-60201	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Compression		Beryllium Copper	Threaded	Board Edge End Launch	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Screw

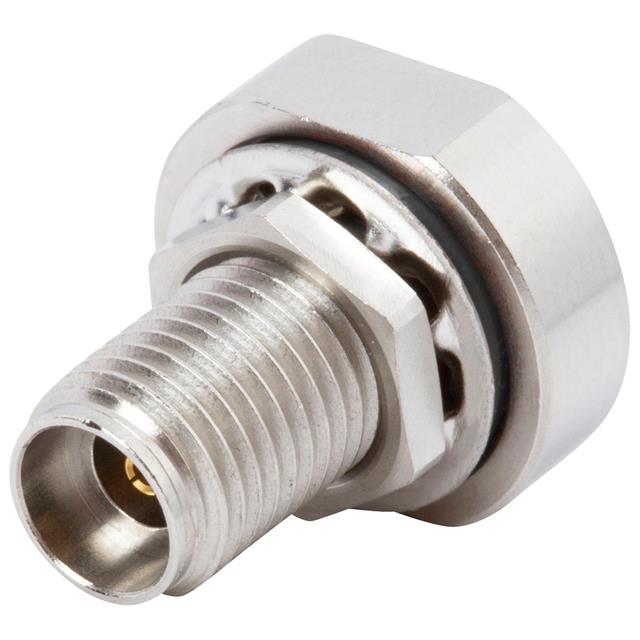

McGill Microwave Systems 1521-60198	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Solder	Bulkhead Front Side Nut	Beryllium Copper	Threaded	Panel Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Clamp	0.085 in	RG-405

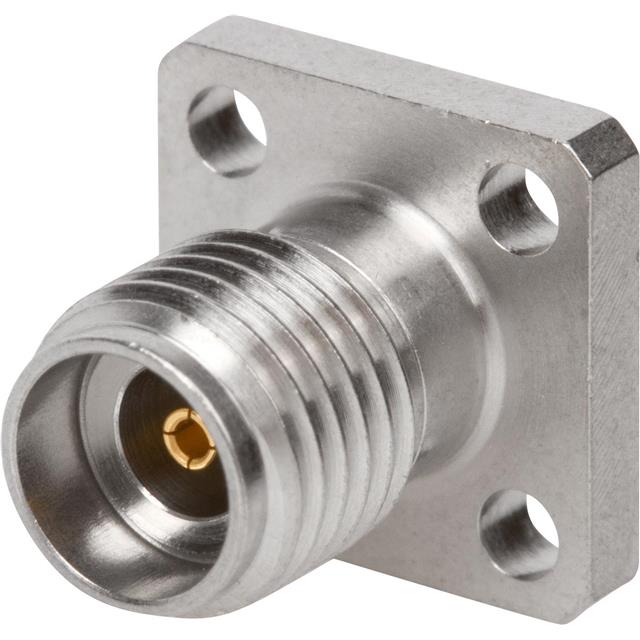

McGill Microwave Systems 1521-60188	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Compression	Flange	Beryllium Copper	Threaded	Surface Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Screw
McGill Microwave Systems 1521-60199	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Solder	Bulkhead Front Side Nut	Beryllium Copper	Threaded	Panel Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Clamp		Semi Rigid	0.047 "
McGill Microwave Systems 1521-60193	500 cycles	Gold	Polyetherimide (PEI)	-65 °C	165 °C	Stainless Steel	40 Gbps	Compression	Flange	Beryllium Copper	Threaded	Surface Mount	50 Ohm	1	Female Socket Jack	2.92 mm	Silver	Screw
