Specification	1-530745-1

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Mating Guide
Insulation Color	Gray
Insulation Height	0.215 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	128
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.05 in
Row Spacing - Mating	0.15 in
Style	Board
Termination	Solder

530745 Series

Part	Style	Number of Rows	Insulation Color	Number of Positions Loaded	Row Spacing - Mating	Termination	Number of Positions	Contact Finish - Mating	Features	Mounting Type	Insulation Height	Contact Finish Thickness - Mating	Pitch - Mating	Connector Type	Fastening Type	Contact Type	Insulation Material	Contact Shape
TE Connectivity AMP Connectors 1-530745-0	Board	2	Gray	All	0.15 in	Solder	110	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 530745-2	Board	2	Gray	All	0.15 in	Solder	30	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square

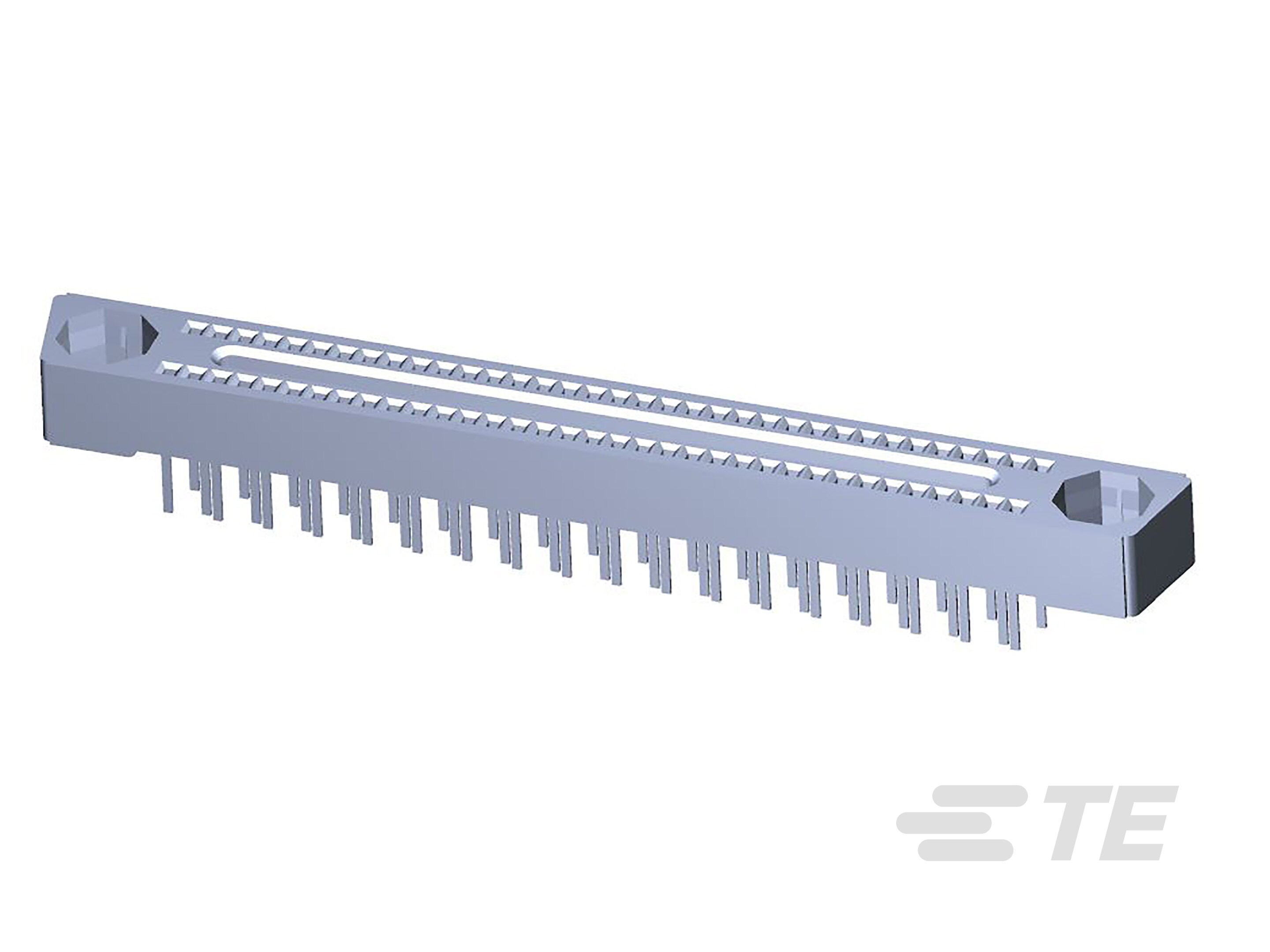

TE Connectivity AMP Connectors 1-530745-3	Board	2	Gray	All	0.15 in	Solder	30	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 2-530745-0	Board	2	Gray	All	0.15 in	Solder	100	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 1-530745-1	Board	2	Gray	All	0.15 in	Solder	128	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 530745-3	Board	2	Gray	All	0.15 in	Solder	40	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 1-530745-8	Board	2	Gray	All	0.15 in	Solder	80	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 1-530745-9	Board	2	Gray	All	0.15 in	Solder	90	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 2-530745-2	Board	2	Gray	All	0.15 in	Solder	128	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square
TE Connectivity AMP Connectors 530745-9	Board	2	Gray	All	0.15 in	Solder	100	Gold	Mating Guide	Through Hole	0.215 in	50 µin	0.05 in	Receptacle	Push-Pull	Female Socket	Liquid Crystal Polymer (LCP)	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1-530745-1 | Datasheet
