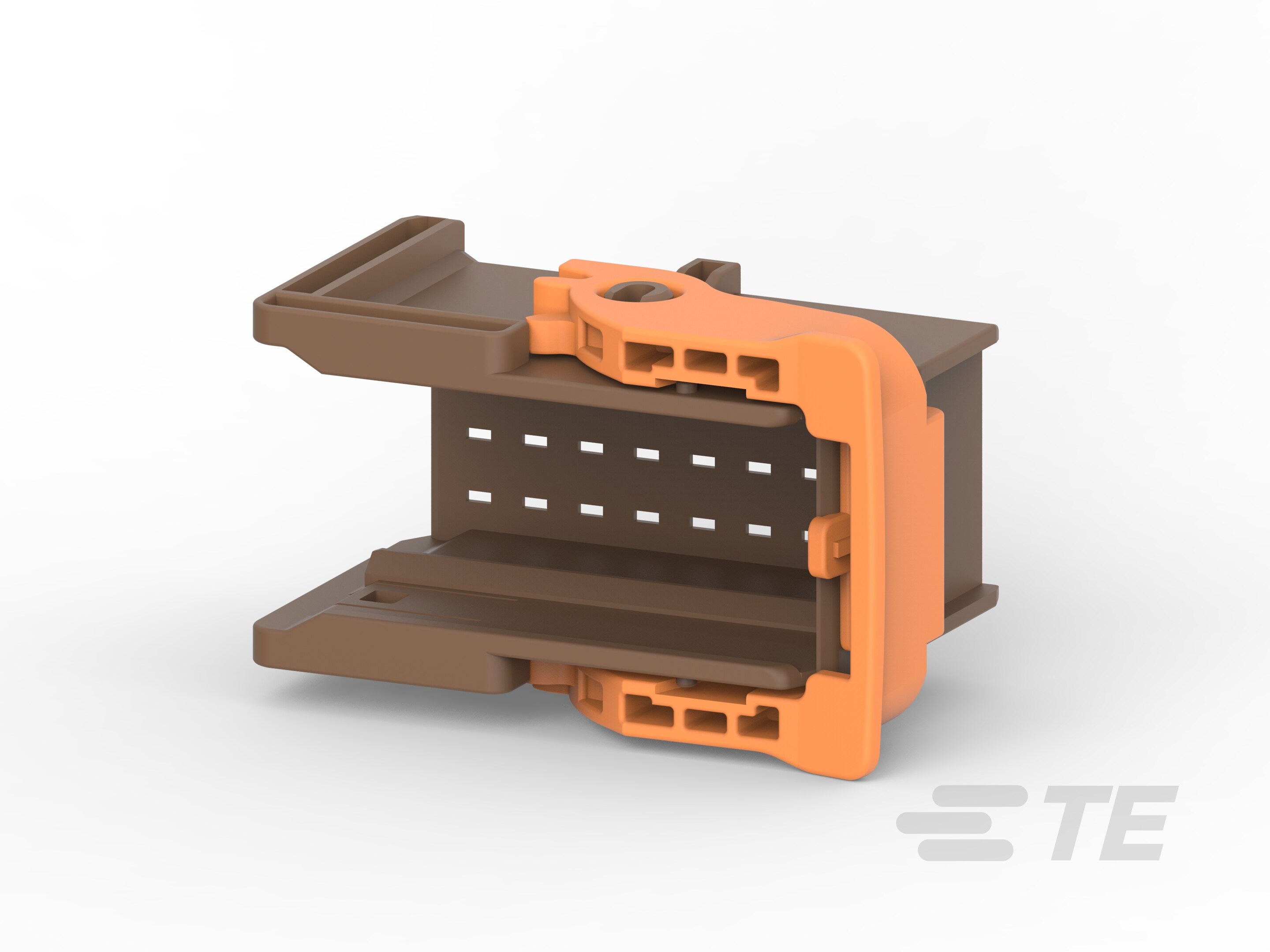

Specification	1-2141847-1

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	36
Number of Rows	4
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.157 in
Row Spacing	0.165 in

AMP MCP Connector System Series

...
