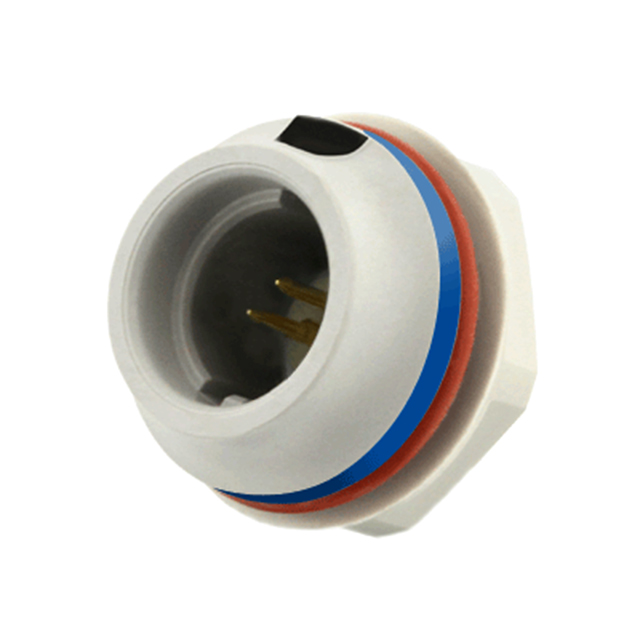

Specification	JMXHH1G02MSUDSA

Applications	Medical, Industrial, Instrumentation
Color	Blue, Light Gray
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	19.7 µin
Contact Material	Copper Nickel
Current Rating	10 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polyetherimide (PEI)
Shell Size - Insert (Maximum)	2
Shell Size - Insert (Minimum)	1
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	300 VAC/DC

JMXHH1 Series

Part	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Current Rating	Number of Positions	Contact Material	Shielding	Ingress Protection IP Rating	Ingress Protection Description	Color	Mounting Type	Contact Finish Thickness - Mating	Termination	Mounting Feature	Material Flammability Rating	Applications	Primary Material	Connector Type	Fastening Type
Amphenol Aerospace Operations JMXHH1G02FSUDSU	2	1	300 VAC/DC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	10 A	2	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G07FSUDSU	7	1	160 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	5 A	7	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G06FCUDSU	6	1	160 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	6 A	6	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G03FSUDSU	3	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	9 A	3	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G10FSUDSU	10 S	1	100 VAC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	2.5 A	10	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G03FCUDSU	3	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	9 A	3	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G05FCUDSU	5	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	7 A	5	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G12FSUDSU	12	1	100 VAC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	2.5 A	12	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G05FSUDSU	5	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	7 A	5	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G04FCUDSU	4 S	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	8 A	4	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
