JMXHH1 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Current Rating	Number of Positions	Contact Material	Shielding	Ingress Protection IP Rating	Ingress Protection Description	Color	Mounting Type	Contact Finish Thickness - Mating	Termination	Mounting Feature	Material Flammability Rating	Applications	Primary Material	Connector Type	Fastening Type

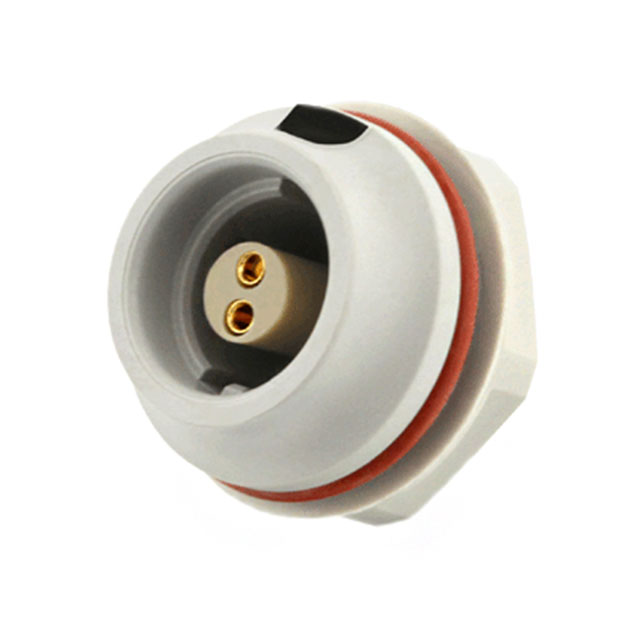

Amphenol Aerospace Operations JMXHH1G02FSUDSU	2	1	300 VAC/DC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	10 A	2	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G07FSUDSU	7	1	160 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	5 A	7	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G06FCUDSU	6	1	160 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	6 A	6	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G03FSUDSU	3	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	9 A	3	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G10FSUDSU	10 S	1	100 VAC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	2.5 A	10	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G03FCUDSU	3	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	9 A	3	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull

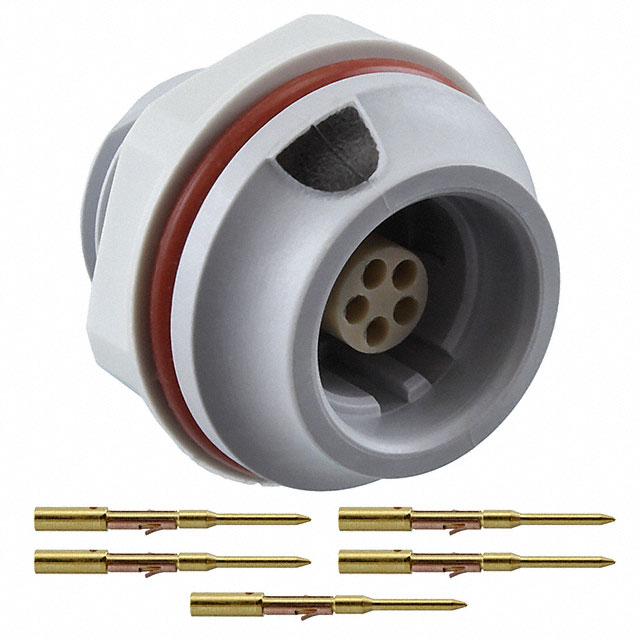

Amphenol Aerospace Operations JMXHH1G05FCUDSU	5	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	7 A	5	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G12FSUDSU	12	1	100 VAC	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	2.5 A	12	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
Amphenol Aerospace Operations JMXHH1G05FSUDSU	5	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	7 A	5	Copper Nickel	Unshielded	IP68	Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Solder Cup	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull

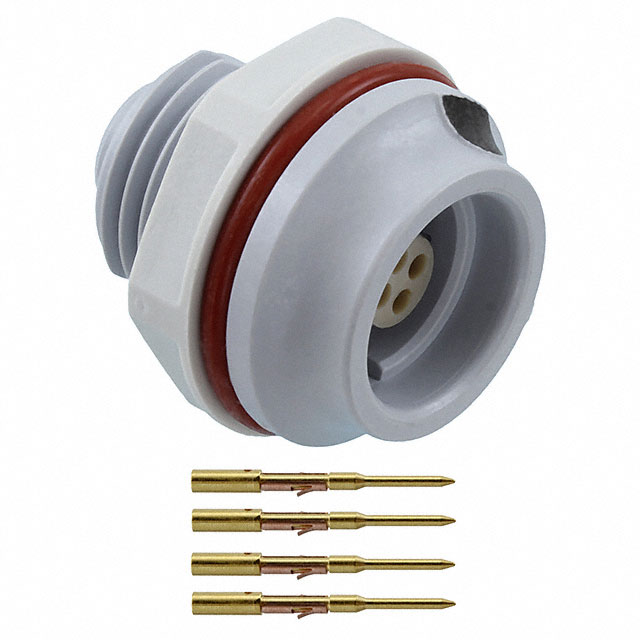

Amphenol Aerospace Operations JMXHH1G04FCUDSU	4 S	1	230 V	Polyetherimide (PEI)	Gold	PEEK Polyetheretherketone	100 °C	-20 °C	G	8 A	4	Copper Nickel	Unshielded	IP50 IP68	Dust Protected Dust Tight Waterproof	Light Gray	Panel Mount	19.7 µin	Crimp	Bulkhead Rear Side Nut	UL94 V-0	Industrial Instrumentation Medical	Plastic	Female Sockets Receptacle	Push-Pull
