Part	Ingress Protection IP Rating	Ingress Protection Description	Shielding	Termination	Number of Positions	Connector Type	Number of Contacts	Tab Direction	Mounting Type	Number of Rows	LED Color	Orientation	Number of Ports	Convert From (Adapter End)	Mounting Feature	Convert To (Adapter End)	Shell Material	Finish	Type	Ratings	Features	Accessory Type	For Use With/Related Products	Style	Cable Type	Length	Color	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems RJFTV7PEM2ZC00	IP68	Dust Tight Waterproof	Unshielded	PC Board Solder	8	Ethernet Jack RJ45	8	User Selectable	Bulkhead Panel Mount	1	Does Not Contain LED	Straight	1
McGill Microwave Systems RJFTV6BZ	IP68	Dust Tight Waterproof	Shielded						Bulkhead Panel Mount					8p8c (RJ45) Jack	Front Side Nut	8p8c (RJ45) Jack	Aluminum	Olive Drab Cadmium Plated	Coupler	Cat6a
McGill Microwave Systems RJFTV7SA2N03100BTX	IP67	Dust Tight Waterproof	Unshielded	PC Board Solder	8	Ethernet Jack RJ45	8	User Selectable	Bulkhead Panel Mount	1	Does Not Contain LED	Straight	1							Cat5e	Circular Threaded Coupling

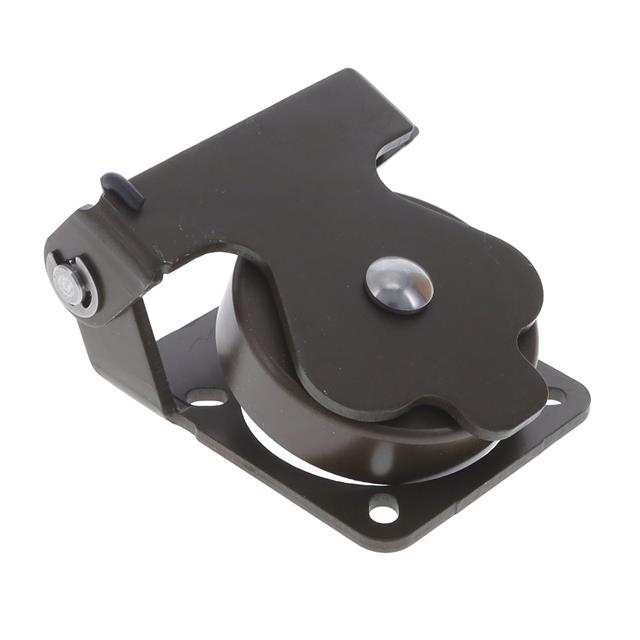

McGill Microwave Systems RJFTVSCCG																						Cap (Cover)	RJF TV Series Receptacle
McGill Microwave Systems RJFTV21S

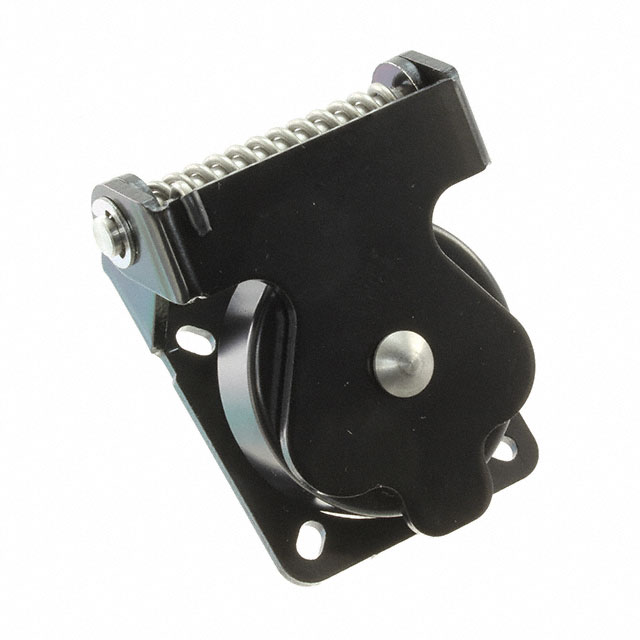

McGill Microwave Systems RJFTVSCCB																						Cap (Cover)	RJF TV Series Receptacle
McGill Microwave Systems RJFTV7SA2G10100BTX			Double Shielded		8	Ethernet Jack to Cable RJ45	8		Bulkhead Panel Mount												Circular Threaded Coupling			Cat5e Industrial Environments - IP68	Round Cable	3.28 ft	Black
McGill Microwave Systems RJFTV72ZN00	IP67	Dust Tight Waterproof	Unshielded	PC Board Solder	8	Ethernet Jack RJ45	8	User Selectable	Bulkhead Panel Mount	1	Does Not Contain LED	Straight	1							Cat5e	Circular Threaded Coupling							-40 °C	85 °C
McGill Microwave Systems RJFTV2SA5NF459	IP68	Dust Tight Waterproof	Unshielded	PC Board Solder	8	Ethernet Jack RJ45	8	User Selectable	Panel Mount Square Flange	1	Does Not Contain LED	Straight	1							Cat5e
McGill Microwave Systems KIT38204	IP68	Dust Tight Waterproof	Shielded	Solder	8	Ethernet Jack RJ45	8	User Selectable	Bulkhead Panel Mount	1	Does Not Contain LED	Straight	1							Cat5e	Circular Threaded Coupling Heat Shrink Tubing							-40 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RJFTVSCCB | Datasheet
