LMR-600-LLPL

Obsolete

McGill Microwave Systems

CABLE LMR-600 FRPVC 50'

LMR-600-LLPL

Obsolete

McGill Microwave Systems

CABLE LMR-600 FRPVC 50'

Description Specifications Series Pricing CAD Documents

Description

General part information

LMR-600 Series

Coaxial - Plenum Cable 50.0' (15.24m) 50 Ohms

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-600-LLPL

Cable Type	Plenum, Coaxial
Conductor Material	Copper Coated, Aluminum
Conductor Strand	Solid
Dielectric Diameter	0.455 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Flame Retardant
Impedance	50 Ohm
Jacket (Insulation) Diameter	0.59 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Plenum
Jacket Color	Orange
Length	50 ft, 500 ft
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-5 °C
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid
Velocity of Propagation (VoP)	76 %

LMR-600 Series

Part	Velocity of Propagation (VoP)	Operating Temperature (Min)	Operating Temperature (Max)	Shield Material	Dielectric Diameter	Dielectric Material	Conductor Material	Jacket Color	Cable Type	Shield Type	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Impedance	Length	Conductor Strand	Features	Length

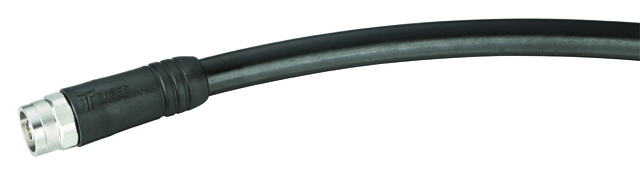

McGill Microwave Systems LMR-600-LSZH	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Bare Copper	Black	Coaxial	Braid	0.59 in	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	50 Ohm	12 in	Solid
McGill Microwave Systems LMR-600-FR	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	Black	Coaxial Riser	Braid	0.59 in	Polyethylene (PE) Riser	50 Ohm	10 ft 50 ft 100 ft 250 ft	Solid	Fire Retardant	Enter Number of Feet in Order Quantity
McGill Microwave Systems LMR-600-DB	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	Black	Coaxial	Braid	0.59 in	Polyethylene (PE)	50 Ohm	10 ft 50 ft 100 ft 250 ft	Solid	Direct Burial Watertight	Enter Number of Feet in Order Quantity
McGill Microwave Systems LMR-600	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	Black	Coaxial	Braid	0.59 in	Polyethylene (PE)	50 Ohm	10 ft 50 ft 100 ft 250 ft	Solid		Enter Number of Feet in Order Quantity
McGill Microwave Systems LMR-600-75-LSZH	87 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Bare Copper	Black	Coaxial	Braid	0.59 in	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	75 Ohm		Solid
McGill Microwave Systems LMR-600-LLPL	76 %	-5 °C	75 °C	Aluminum Copper Tinned	0.455 in	Polytetrafluoroethylene (PTFE)	Aluminum Copper Coated	Orange	Coaxial Plenum	Braid	0.59 in	Plenum Poly-Vinyl Chloride (PVC)	50 Ohm	50 ft 500 ft	Solid	Flame Retardant
McGill Microwave Systems LMR-600-PVC	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	Black	Coaxial	Braid	0.59 in	Poly-Vinyl Chloride (PVC)	50 Ohm		Solid
McGill Microwave Systems LMR-600-PVC-W	85 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	White	Coaxial	Braid	0.59 in	Poly-Vinyl Chloride (PVC)	50 Ohm		Solid
McGill Microwave Systems LMR-600-LLPX	76 %	-40 °C	125 °C	Aluminum Copper Tinned	0.455 in	Polytetrafluoroethylene (PTFE)	Aluminum Copper Coated	Red	Coaxial Plenum	Braid Foil	0.565 in	Fluoropolymer Plenum	50 Ohm	10 ft 50 ft 100 ft 250 ft	Solid		Enter Number of Feet in Order Quantity
McGill Microwave Systems LMR-600-75-DB	87 %	-40 °C	85 °C	Aluminum Copper Tinned	0.455 in	Foam Polyethylene (FPE)	Aluminum Copper Coated	Black	Coaxial	Braid	0.59 in	Polyethylene (PE)	75 Ohm		Solid	Direct Burial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
