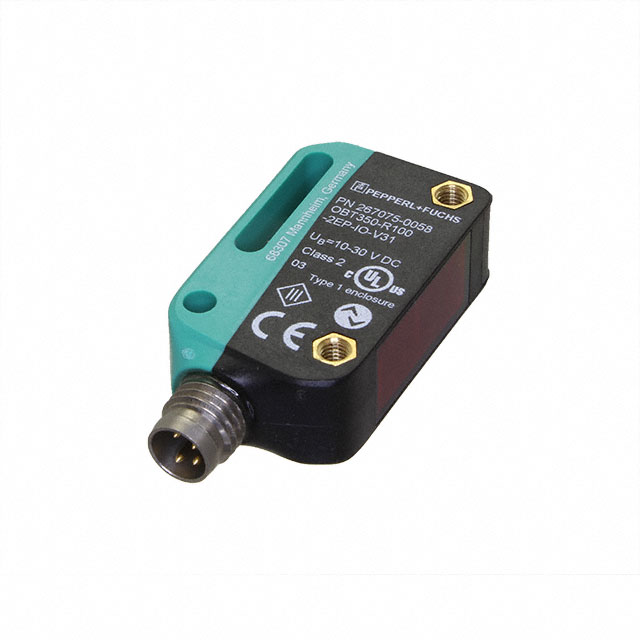

Specification	OBT350-R100-2EP-IO-V31

Adjustment Type	Adjustable
Connection Method	M8, Connector
Ingress Protection	IP69K
Light Source	Red LED
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Light-ON - Selectable, NPN - Dark-ON
Response Time	1 ms
Sensing Distance Maximum	13.78 "
Sensing Distance Minimum	0.197 "
Sensing Method	Diffuse
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

OBT350 Series

Part	Connection Method	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Sensing Distance Minimum	Sensing Distance Maximum	Cable Length	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Light Source	Response Time	Adjustment Type	Sensing Method	Ingress Protection

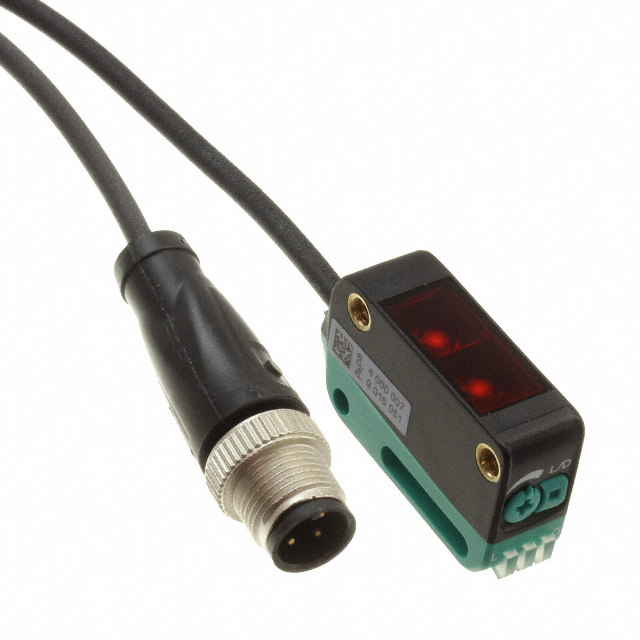

Pepperl+Fuchs, Inc. OBT350-R100-2EP-IO-0.3M-V1	Cable with Connector	60 °C	-40 °C	Light-ON - Selectable NPN - Dark-ON	0.197 "	13.78 "	11.81 in	10 VDC	30 VDC	Red LED	1 ms	Adjustable	Diffuse	IP69K
Pepperl+Fuchs, Inc. OBT350-R100-2EP-IO-V31	Connector M8	60 °C	-40 °C	Light-ON - Selectable NPN - Dark-ON	0.197 "	13.78 "		10 VDC	30 VDC	Red LED	1 ms	Adjustable	Diffuse	IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
