TJ0271040000G

Active

McGill Microwave Systems

TERM BLOCK PLUG 2POS STR 5MM

TJ0271040000G

Active

McGill Microwave Systems

TERM BLOCK PLUG 2POS STR 5MM

Description Specifications Series Pricing CAD Documents

Description

General part information

TJ02 Series

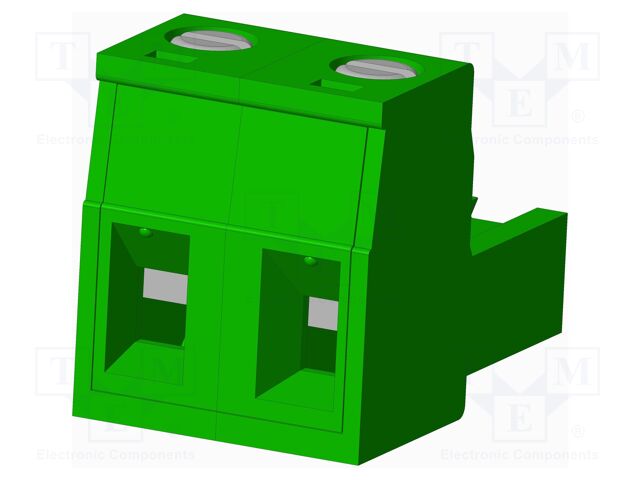

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

Specification	TJ0271040000G

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Current - IEC	20 A
Current - UL	20 A
Features	Retention Latches (Non-Wire Side), Strain Relief
Housing Material	Thermoplastic
Insulation Height	0.634 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plug Wire Entry Angle	180 °
Positions Per Level	2
Screw Size	M3
Termination Style	Screw
Torque - Screw	0.56 Nm
Type	Female Sockets, Plug
Voltage - IEC	300 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	24 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.34 mm²
Wire Strip Length (Max)	8 mm
Wire Strip Length (Min)	7 mm

TJ02 Series

Part	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Color	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Type	Mounting Type	Current - UL	Plug Wire Entry Angle	Voltage - UL	Features	Number of Levels	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Voltage - IEC	Positions Per Level	Termination Style	Current - IEC	Screw Size	Material Flammability Rating	Housing Material	Wire Strip Length (Max)	Wire Strip Length (Min)	Insulation Height	Torque - Screw	Contact Material	Wire Gauge or Range - mm²
McGill Microwave Systems TJ0271040000G	2.5 mm²	0.34 mm²	Black	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Retention Latches (Non-Wire Side) Strain Relief	1	2	-40 °C	115 °C	0.197 in	300 V	2	Screw	20 A	M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.634 in	0.56 Nm	Copper
McGill Microwave Systems TJ0251530000G	2.5 mm²	1 mm²	Green	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	12 A	180 °	300 V	Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	5.08 mm		2	Screw - Rising Cage Clamp		M3	UL94 V-0	Thermoplastic Resin	8 mm	7 mm	0.594 in	0.56 Nm	Copper Alloy
McGill Microwave Systems TJ0271860000G			Gray	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.197 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ0271570000G			Green	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Mating Flange Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.197 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ0211540000G			Green	28 AWG	16 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	10 A	180 °	300 V	Strain Relief	1	2	-40 °C	115 °C	0.138 in	300 V	2	Screw	10.5 A	M2	UL94 V-0	Thermoplastic	7 mm	6 mm			Phosphor Bronze	1.5 mm²
McGill Microwave Systems TJ02A1520000G			Green	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Mating Flange Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.295 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ0251820000G	2.5 mm²	0.34 mm²	Gray	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Mating Flange Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	5.08 mm	300 V	2	Screw	20 A	M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ0201000000G			Black	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.3 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ02A1500000G			Green	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.295 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
McGill Microwave Systems TJ0201500000G			Green	24 AWG	12 AWG	Tin	Female Sockets Plug	Free Hanging (In-Line)	20 A	180 °	300 V	Retention Latches (Non-Wire Side)	1	2	-40 °C	115 °C	0.3 in		2	Screw		M3	UL94 V-0	Thermoplastic	8 mm	7 mm	0.594 in	0.56 Nm	Copper
