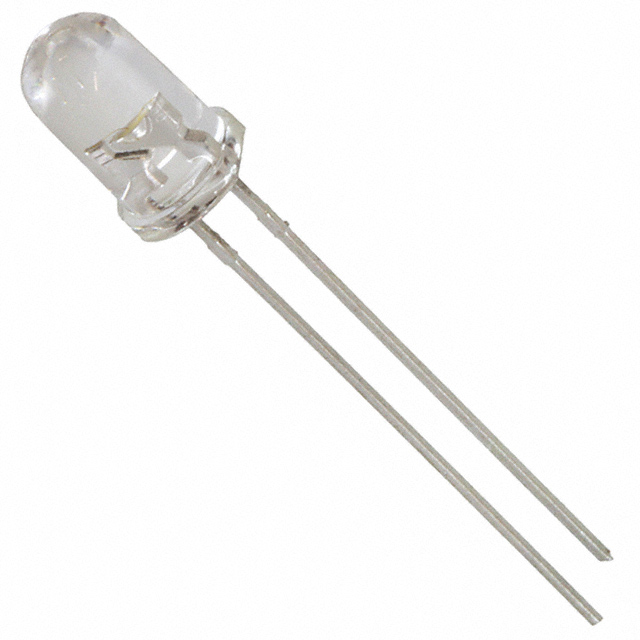

C513A-WSS-CY0Z0341

Active

CreeLED, Inc.

LED, COOL WHITE, THROUGH HOLE, T-1 3/4 (5MM), 20 MA, 3.2 V, 6.9 CD

C513A-WSS-CY0Z0341

Active

CreeLED, Inc.

LED, COOL WHITE, THROUGH HOLE, T-1 3/4 (5MM), 20 MA, 3.2 V, 6.9 CD

Description Specifications Series Pricing CAD Documents

Description

General part information

C513A Series

White, Cool 9000K LED Indication - Discrete 3.2V Radial

Technical Specifications

Parameters and characteristics for this part

Specification	C513A-WSS-CY0Z0341

Color	Cool, White
Configuration	Standard
Current - Test	20 mA
Height (Max)	12.2 mm
Lens Diameter	5 mm
Lens Style	Round, Domed Top
Millicandela Rating	8930 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Round
Supplier Device Package Shape	Round
Supplier Device Package Size	5 mm
Viewing Angle	55 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant (Color Temperature)	9000 K

C513A Series

Part	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Mounting Type	Wavelength - Dominant (Color Temperature)	Color	Configuration	Lens Color	Lens Style	Height (Max)	Viewing Angle	Supplier Device Package	Lens Transparency	Millicandela Rating	Lens Size	Lens Size (Code)	Lens Diameter	Supplier Device Package Size	Supplier Device Package Shape	Package Name
CreeLED, Inc. C513A-MSS-CX0Z0232	Radial	3.2 V	20 mA	Through Hole	2800 K	Warm White	Standard	Colorless	Domed Top Round	12.2 mm	55 °	5 mm	Clear	8090 mcd	5 mm	T-1 3/4
CreeLED, Inc. C513A-MSS-CW0Z0131	Radial	3.2 V	20 mA	Through Hole	2800 K	Warm White	Standard	Colorless	Domed Top Round	12.2 mm	55 °	5 mm	Clear	7500 mcd	5 mm	T-1 3/4
CreeLED, Inc. C513A-WSS-CY0Z0232	Radial	3.2 V	20 mA	Through Hole	9000 K	Cool White	Standard		Domed Top Round	12.2 mm	55 °			8930 mcd			5 mm	5 mm	Round	5mm Round
CreeLED, Inc. C513A-MSN-CV0Y0131	Radial	3.2 V	20 mA	Through Hole	2800 K	Warm White	Standard	Colorless	Domed Top Round	7.6 mm	55 °		Clear	5165 mcd			5 mm	5 mm	Round	5mm Round
CreeLED, Inc. C513A-WSS-CX0Z0341	Radial	3.2 V	20 mA	Through Hole	9000 K	Cool White	Standard		Domed Top Round	12.2 mm	55 °			8090 mcd			5 mm	5 mm	Round	5mm Round
CreeLED, Inc. C513A-WSS-CY0Z0341	Radial	3.2 V	20 mA	Through Hole	9000 K	Cool White	Standard		Domed Top Round	12.2 mm	55 °			8930 mcd			5 mm	5 mm	Round	5mm Round
CreeLED, Inc. C513A-WSN-CY0Z0342	Radial	3.2 V	20 mA	Through Hole	9000 K	Cool White	Standard		Domed Top Round	9.1 mm	55 °			8930 mcd			5 mm	5 mm	Round	5mm Round
CreeLED, Inc. C513A-MSS-CX0Z0511	Radial	3.2 V	20 mA	Through Hole	2800 K	Warm White	Standard	Colorless	Domed Top Round	12.2 mm	55 °	5 mm	Clear	8090 mcd	5 mm	T-1 3/4
CreeLED, Inc. C513A-MSN-CX0Z0232	Radial	3.2 V	20 mA	Through Hole	2800 K	Warm White	Standard	Colorless	Domed Top Round	9.1 mm	55 °	5 mm	Clear	8090 mcd	5 mm	T-1 3/4
CreeLED, Inc. C513A-WSN-CX0Z0341	Radial	3.2 V	20 mA	Through Hole	9000 K	Cool White	Standard		Domed Top Round	9.1 mm	55 °			8090 mcd			5 mm	5 mm	Round	5mm Round
