9ZML1245 Series

2:12 PCIe Clock Mux Gen1-5, Zo = 100ohm

Manufacturer: Renesas Electronics Corporation

Catalog

2:12 PCIe Clock Mux Gen1-5, Zo = 100ohm

Part	Mounting Type	Package Width	Package Name	Package Length	PLL	Number of Circuits	Main Purpose	Package / Case	Differential Input	Differential Output	Frequency - Max	Input	Input Ratio	Output Ratio	Output	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)
Renesas Electronics Corporation 9ZML1245AKILFT	Surface Mount	10 mm	72-VFQFPN	10 mm	Yes	1	PCI Express (PCIe)	72-VFQFN Exposed Pad	Yes	Yes	400 MHz	Clock	2	12	LP-HCSL	3.135 V	3.465 V	85 °C	-40 °C

Catalog

2:12 PCIe Clock Mux Gen1-5, Zo = 100ohm

Description

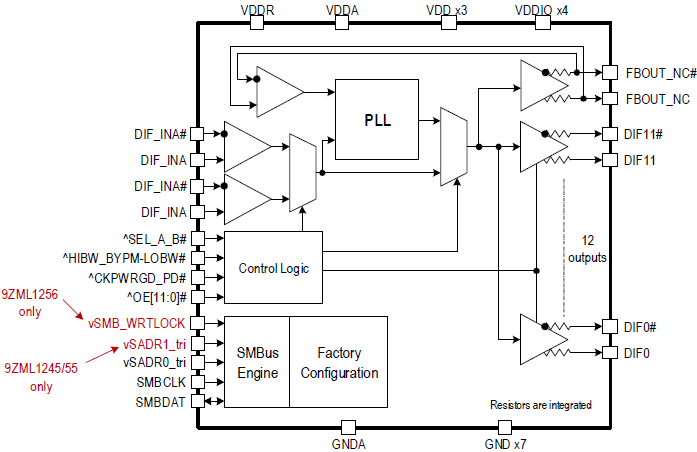

The 9ZML1245 is a second generation of enhanced performance DB1200ZL derivative. The device features both PLL and Bypass modes for flexibility. The PLL has a low noise PLL that can be used as a PCIe clock jitter cleaner. The device supports PCIe Gen1–5 and more complex architectures like SRIS and SRNS clocking. 9ZML1245 also features an SMBus Write Lockout pin for increased device and system security. For information regarding evaluation boards and material, please contact your localsalesrepresentative.
